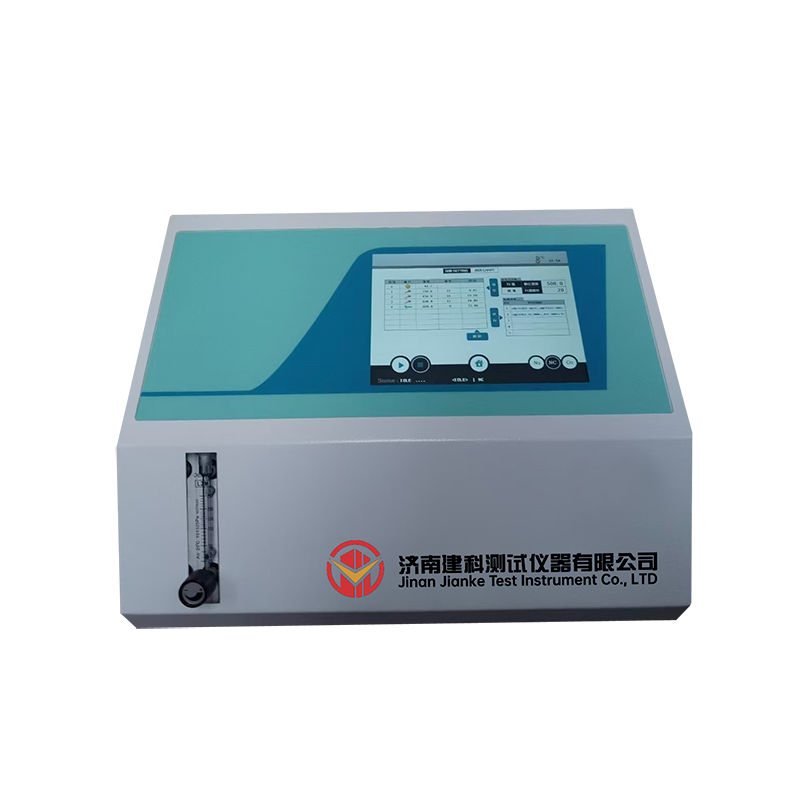

Product name: Carbon black content tester
Product model: KTH-990A
Product function: Used to determine the carbon black content in polyethylene, polypropylene, and polybutylene plastics.
Based on standards:
GB/T 2951.41 General test methods for insulation and sheathing materials of cables and optical cables
GB/T 3515 Determination of carbon content of rubber-pyrolysis method
GB/T13021 Carbon black content tester for polyethylene pipes and fittings (thermal gravimetric method)
ASTM D1603 and other related test standards such as general test methods for insulation and sheathing materials of cables and optical cables
The heating furnace body and control system are designed in an integrated manner, which is convenient for users to manage the instrument.
High degree of automation, only need to set the temperature value and heating time, the instrument will automatically heat up to the set value;
High temperature control accuracy, large temperature range, high furnace temperature uniformity;
Large screen LCD touch screen display, intuitive and simple operation;
It has excellent constant temperature function, and can set constant temperature time, with high constant temperature accuracy;
The instrument can set any group of different heating time periods, and can have different heating temperatures, heating rates, and constant temperature times;
The parameter display is comprehensive, showing the number of setting groups, theoretical temperature, actual temperature, heating time (or constant temperature time);
The set parameters and heating or constant temperature time can be viewed during the operation of the instrument.
Serial number | Parameter | Parameter |
1 | Display mode | 8-inch capacitive touch screen |
2 | Furnace size | Φ31×300，±5mm |
3 | Heating element | High temperature alloy wire |
4 | Heating zone length | 200mm |
5 | Constant temperature zone length | 100mm |
6 | Working temperature | Room temperature～1200℃ |
7 | Temperature control method | Intelligent programmable control |
8 | Sensor sensitivity | 0.01℃ |
9 | Air circuit control | Two channels |
10 | Supply voltage | 220V±10%, 50Hz (must be reliably grounded) |
