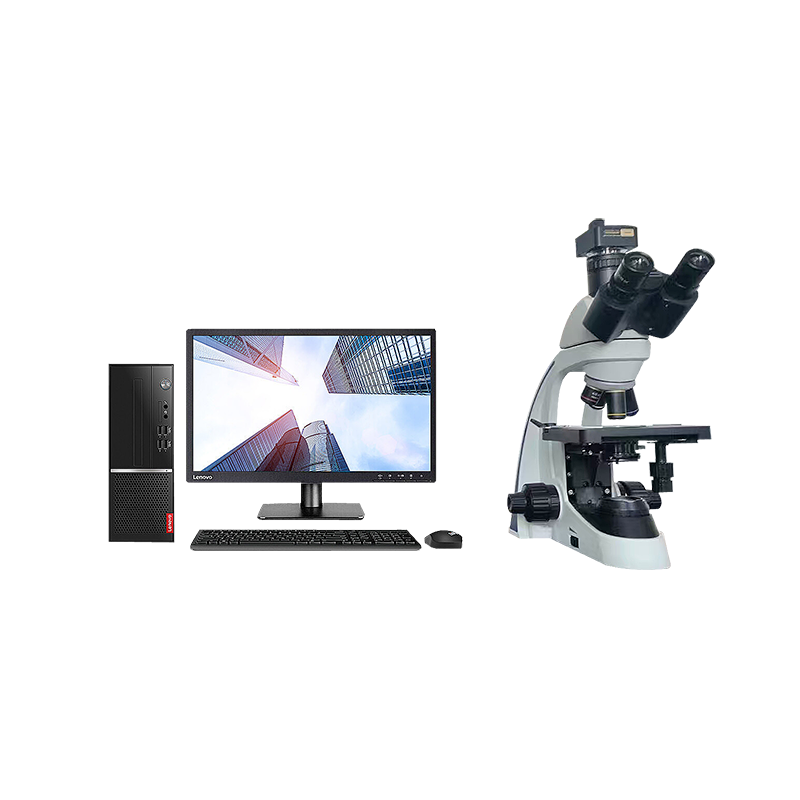

Product name: Carbon black dispersion tester
Product model: KTHF-IC
Product function: Used to detect the dispersion of color and carbon black in polyolefin pipes, fittings and mixed materials; by measuring the size, morphology and dispersion of carbon black particles.
Based on standards:
GB/T 18251 Determination of the dispersion of pigments or carbon black in polyolefin pipes, fittings and mixed materials
ISO/DIS 18553
Professional image detection, high detection accuracy, and traceable measurement accuracy.
The measurement parameters cover a wealth of information on the scale (equivalent diameter, long and short diameters, area, perimeter, etc.) and morphology (roundness, rectangularity, aspect ratio, etc.) of carbon black particles.
Professional processing procedures: ensure accurate results of carbon black composition, and automatically complete the process from image acquisition to output results.
Data analysis and reporting system: based on the standard carbon black dispersion statistical report template, it fully meets the user's personalized needs for statistical methods and report formats.
It can be adapted to a variety of acquisition devices (cameras or digital cameras) to match different computers.
Serial number | Parameter | Parameter |
1 | Detection range | 1um～1cm |
2 | Imaging resolution | 2592*1944 |
3 | Scan system | 625 lines, 50 fields/second |
4 | Sync system | Internal sync/vertical sync lock |
5 | Horizontal definition | 600 lines |
6 | Sample window aperture | 4mm |
7 | Test area | 1.7*1.25mm |
8 | Optical magnification | 100× |
9 | Light source illumination angle | 30° |
10 | Image size | 320×240 pixels |
11 | Supply voltage | 220V±10%, 50Hz (must be reliably grounded) |
