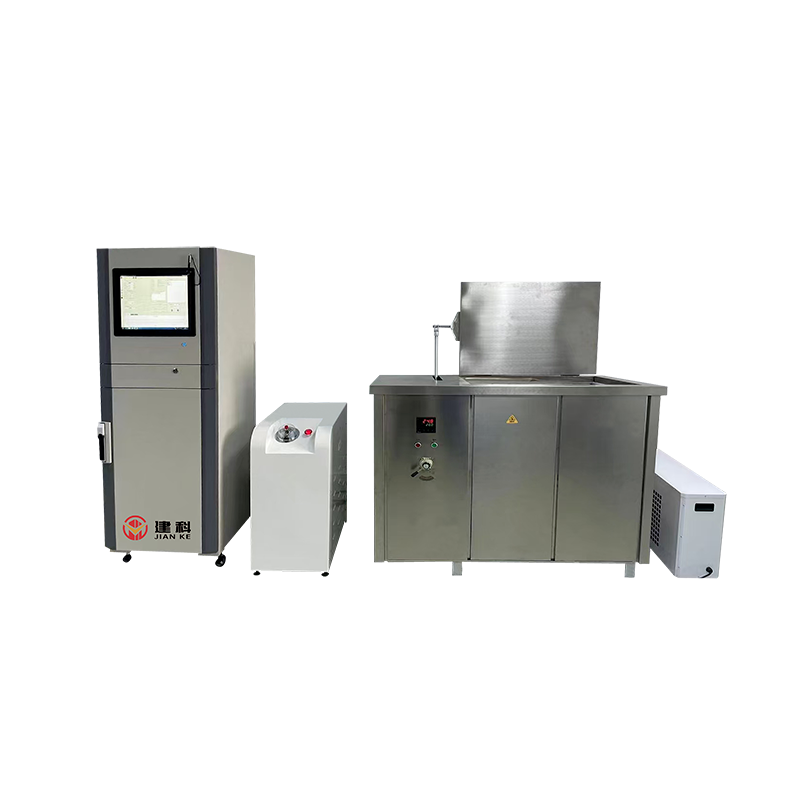

Pipe hydrostatic testing machine

One machine has multiple uses: it can be used for long-term hydrostatic test of pipelines and burst test of pipes, and can also be used for thermal stability test of thermoplastic pipes under hydrostatic state;
Important components: imported pump head, German solenoid valve, British GEMS sensor, long-term reliable operation and extremely high stability;
Wide pressure control range: the pressure control range of each station can be set arbitrarily from 0.4 to 16MPa.
Guarantee of high reliability: All electrical, mechanical and software parts are equipped with safety protection measures;
Heating temperature control system: The water tank has a built-in heating system with high heat exchange efficiency. The stainless steel horizontal hot water pump is installed horizontally with a large flow of 1200L/hour. The hot water pump draws hot water from the bottom and sprays it from the top. The temperature in the tank is uniform and there is no need to shut down the machine when maintaining the heater;
Refrigeration temperature control system: An external high-power industrial chiller with good refrigeration effect;
Box cover opening method: The cylinder opens, and the box cover opening angle (opening size) can be stopped at will;
Box cover sealing method: Silicon rubber strips are used for sealing, and there is no gas overflow at high temperatures;
Hydrostatic water tank and pipeline: The whole is made of 304 stainless steel, the inner tank is wrapped as a whole for insulation, the heating rate is fast and energy-saving, and the outer box body is still close to room temperature at 95℃ water temperature. Adopts circulating spray system pipeline, the whole pipeline system is made of 304 stainless steel;
The inner wall of the water tank is equipped with high-pressure interface, each interface can be equipped with quick connector and high-pressure hose;
Protection function: It has automatic water replenishment function, water shortage shutdown protection function, overflow and other functions;
Humanized design: There is an automatic time increase option, and the time can also be increased manually, which can be used to compensate for the invalid time in the middle, and the test pressure can also be changed in the middle;
