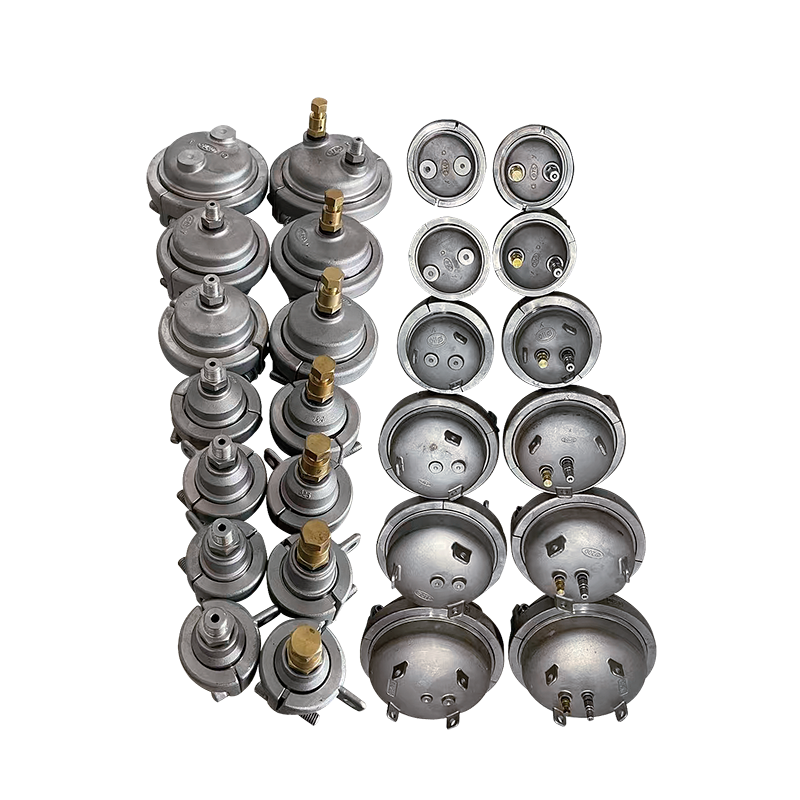

Product name: Stainless steel clamp
Product function: This clamp is suitable for pipe static hydraulic burst test machine. It is a type A plastic pipe pressure test clamp that can firmly clamp the pipe and is a key auxiliary tool for plastic pipe pressure test machine.
Appearance structure: mold forging structure, light weight, good load-bearing;
Sealing silicone ring: all adopt O-type structure;
Conversion joint: PT1/4 internal thread, stainless steel material;
Clamp interface: M12*1.25 internal thread;
Clamp air outlet: universal M10 internal thread.
The clamp has a simple structure and is easy to install. Due to the unique design, the installation success rate can reach 100%, and it is easy to disassemble and install.
Select high-quality 304 stainless steel mold casting process.
The clamp has a split structure, a bundle-type connection, and a compression seal, with a one-time sealing rate of 100%.
Each head is equipped with a special air outlet, which can be sealed manually and can be directional to prevent injury;
Serial number | Parameter | Parameter |
1 | Specification | Φ16, Φ20, Φ25, Φ32 , Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ180, Φ200, Φ225, Φ250, Φ280, Φ 315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200 (mm), can be customized |
