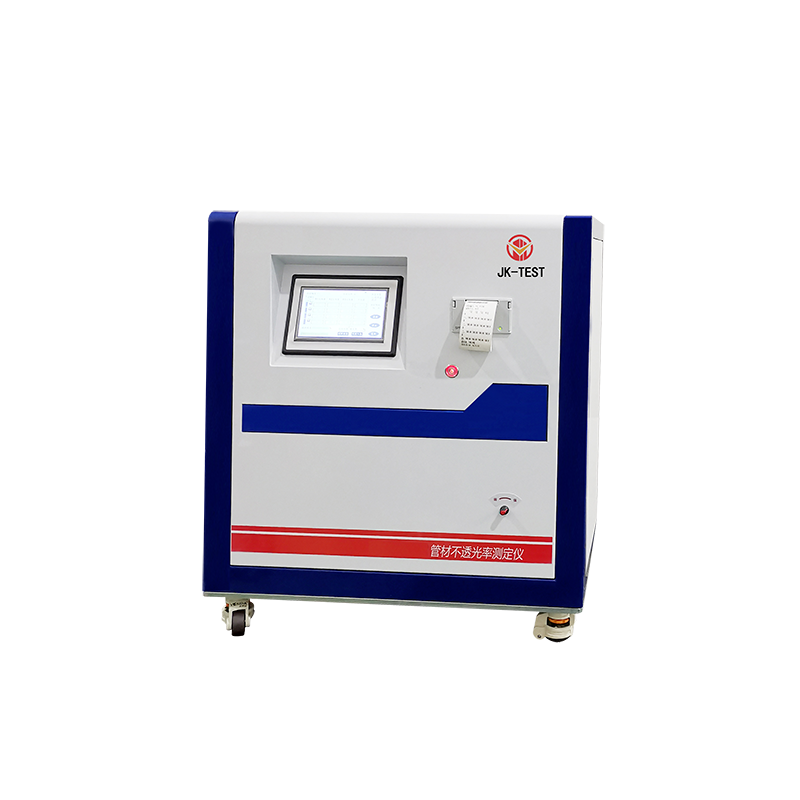

Product name: Pipe opacity tester
Product model: JKTG-40
Product function: Pipe opacity tester can be used to measure the opacity of plastic pipes and fittings (displayed as a percentage).
Based on standards:
GB/T 21300 Plastic pipes and fittings Determination of opacity
ISO 7686 Determination of opacity of plastic pipes and fittings
Four samples can be tested at the same time. If there are less than four samples, they can also be tested by selection.
The industrial-grade touch screen with strong anti-interference ability is used as the human-computer interaction interface, and the operation process is simple and convenient.
The luminous flux acquisition system adopts a high-precision light collector and at least 24-bit analog-to-digital conversion circuit.
It has the functions of automatic identification, positioning, tracking, and mobile testing of four samples and 12 measurement points.
It adopts industrial touch screen control and has the functions of automatic analysis, recording, storage, and display.
The instrument has a reasonable structure, stable performance, high efficiency, energy saving, simple operation, and convenient maintenance.
Serial number | Parameter | Parameter |
1 | Control method | RM core board control, fully automatic test process, touch screen operation and display |
2 | Pipe diameter range | Φ16～Φ40mm |
3 | Luminous flux collection system | Using high-precision light collector and 24-bit analog-to-digital conversion circuit |
4 | Light wavelength | 545nm±5nm, using LED energy-saving standard light source |
5 | Luminous flux resolution | ±0.01% |
6 | Luminous flux measurement error | Difference ±0.05% |
7 | Grating | 5 specifications: 16, 20, 25, 32, 40 |
8 | Automatic entry/exit speed | 384mm/min |
9 | Automatic entry/exit movement distance | 160mm±0.5mm |
10 | Sample tracking system positioning accuracy | ±0.1mm |
11 | Sample holder | 5 pieces, specifications are 16, 20, 25, 32, 40 |
12 | Positioning function | It has automatic positioning of the sample to ensure that the sample surface is perpendicular to the incident light. |
13 | Supply voltage | 220V±10% 50Hz (must be reliably grounded) |
14 | Machine power | 500W |
15 | Load frame size (length*width*height) | ≈600x450x700mm |
26 | Load frame weight | ≈40kg |
