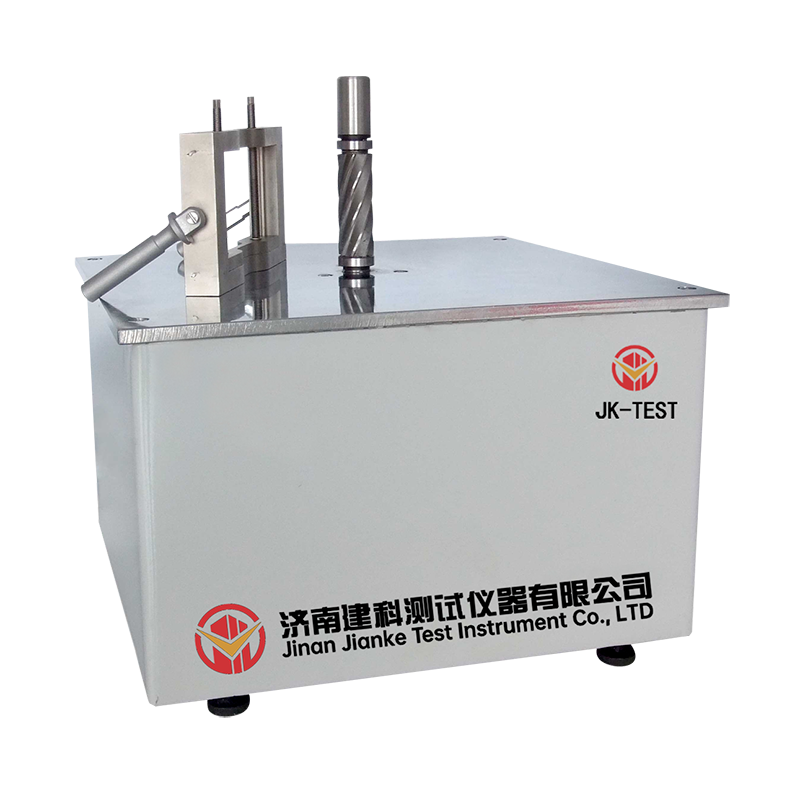

Product name: Electric dumbbell type sample making machine
Product model: JKXYZ-70 / JKXYZ-20
Product function: Used for the preparation of dumbbell and straight strip specimens in tensile tests of non-metallic materials.
Based on standards:
GB/T 1040.1~5 Determination of tensile properties of plastics
GB 8802 Determination of Vicat softening temperature of rigid polyvinyl chloride (PVC-U) pipes and fittings
GB 1634 Test method for softening point (Vicat) of thermoplastics
GB/T 8804.2 Determination of tensile properties of thermoplastic pipes Part 2
GB/T 8804.3 Determination of tensile properties of thermoplastic pipes Part 3
The principle of profiling is adopted, and the principle of mechanical transmission is combined to convert the thread rotation into linear motion. It has the characteristics of simple, fast and convenient operation, standard and stable size of the sample. The working process is not affected by the operator's transfer, and it can be used repeatedly without repeated tool adjustment. A dust collection device is installed on the work surface. The tool is durable, and the sample edge is smooth and burr-free.
Serial number | Parameter | JKXYZ-70 | JKXYZ-20 |
1 | Milling cutter diameter | 27mm | |
2 | Milling cutter speed | 2900 rpm | |
3 | Work surface size | 400mm×400mm | |
4 | Sample thickness | 1～70mm | 1～20mm |
5 | Specimen width | 20～50mm | 16～50mm |
6 | Supply voltage | 380V | |
7 | Power | 370W | |
8 | Weight | ≈85Kg | |
