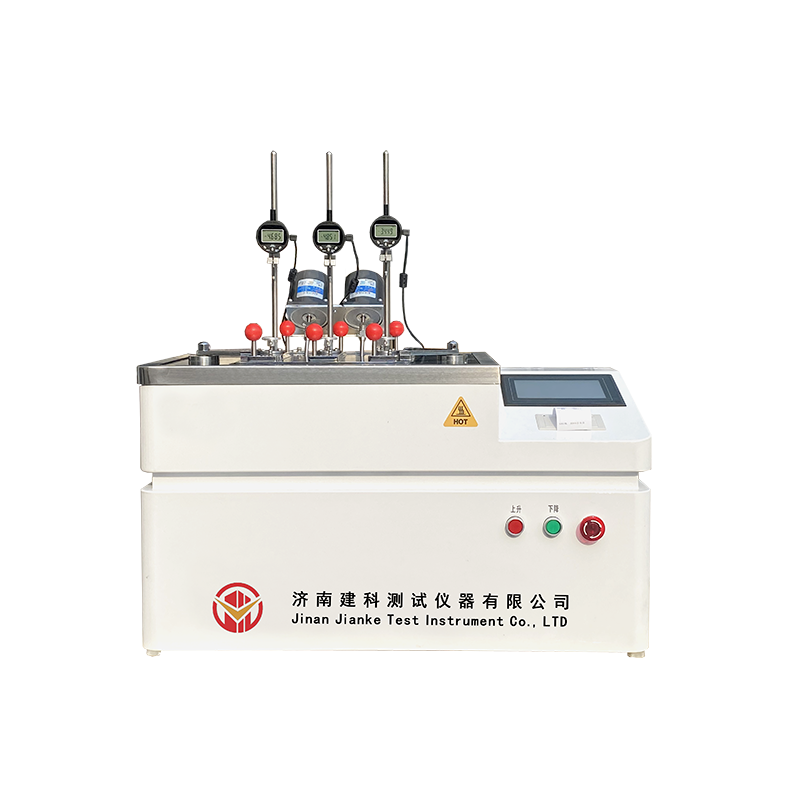

Product name: Vicat softening temperature tester
Product model: KXRW-300MT
Product function: Used for the determination of heat deformation temperature and Vicat softening point temperature of non-metallic materials such as plastics, hard rubber, nylon, electrical insulation materials, long fiber reinforced composite materials, high-strength thermosetting laminates.
Based on standards:
GB/T 1633 Determination of Vicat softening temperature (VST) of thermoplastics
GB/T 8802 Determination of Vicat softening temperature of thermoplastic pipes and fittings
GB/T 1634 Test method for heat deformation temperature of plastic bending load
ISO 2507
ISO 75
ISO 306
ASTMD 1525
ASTMD 648
Test frame lifting system: manual lifting.
Control system: touch screen control, display temperature and displacement, draw test curves, and print test curves and test data.
Safety protection: multiple hardware and software safety designs such as mechanical temperature upper limit protection switch, software temperature upper limit protection, automatic stop after test completion, and administrator operation key ensure safe and stable operation of the test.
High-precision measurement and control system: high-performance temperature sensor and capacitive digital display micrometer for accurate measurement, the temperature rise rate error is less than 0.5℃;
Serial number | Parameter | KXRW-300MT-3 | KXRW-300MT-4 | KXRW-300MT-6 |
1 | Temperature control range | Room temperature～300℃ | ||
2 | Maximum temperature error | ±0.5℃ | ||
3 | Maximum test stations | 3 channels | 4 channels | 6 channels |
Customizable | ||||
4 | Heating rate | 50℃/h, 120℃/h, or any setting between 50℃/h and 120℃/h | ||
5 | Temperature measuring point | 1 point Can be expanded to 3 points | 1 point Can be expanded to 4 points | 1 point Can be expanded to 6 points |
6 | Deformation measurement range | 0～10mm | ||
7 | Maximum deformation error | ±0.005mm | ||
8 | Deformation resolution | 0.001mm | ||
9 | Specimen support span | 64mm、100mm | ||
10 | Heating power | 4KW | ||
11 | Test frame lifting method | Manual lifting | ||
12 | Working medium | Methyl silicone oil or transformer oil (user-supplied) | ||
13 | Cooling method | Natural cooling/tap water cooling External low-temperature water tank water circulation cooling (optional) | ||
14 | Power supply | 220V | ||
