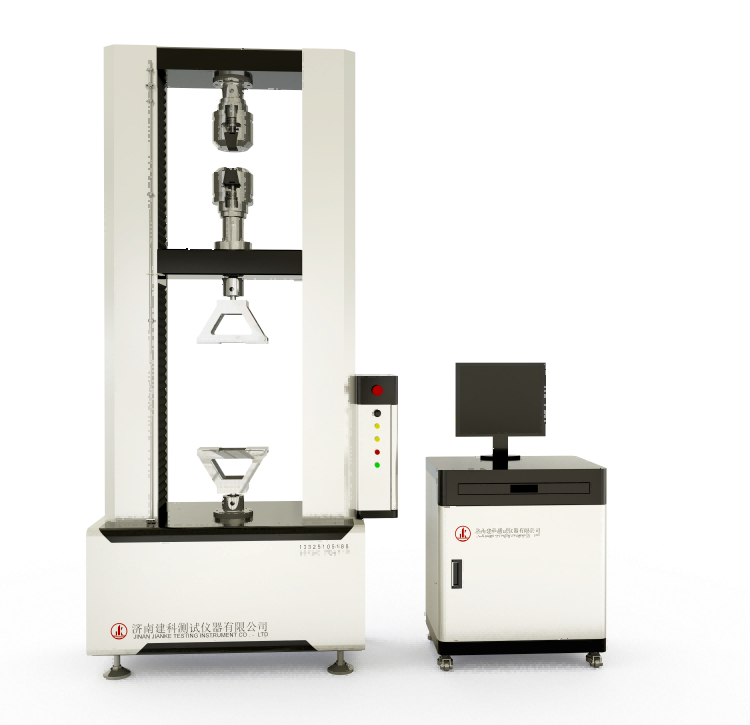

Product name: Microcomputer controlled concrete ultimate tensile testing machine
Product model: WDW-100L/ WDW-200L
Product function: Determine the axial tensile strength, ultimate tensile value and tensile elastic modulus of concrete. Draw the concrete axial tensile load-displacement curve and axial tensile stress-strain curve, obtain the secant elastic modulus of the failure stress, and determine the tensile elastic modulus of concrete.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tension, pressure and universal testing machines
JJG 475 Electronic universal testing machine
SL 352 Hydraulic concrete test procedures
GB/T 50081 Standard test methods for concrete physical properties
DL/T 5150 Hydraulic concrete test procedures
CECS 13 Standard test methods for fiber concrete
T/CBMF 37 Basic properties and test methods of ultra-high performance concrete
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum Test Force | 100kN | 200KN |
2 | Testing Machine Accuracy Class | 0.5class | |
3 | Load Measurement Range | 0.4%～100%FS | |
4 | Relative Indication Error | ±0.5% | |
5 | Test Force Resolution | 1/±500000FS（constant throughout the range） | |
6 | Deformation Measurement Range | 0.2%～100% FS | |
7 | Force Control Rate Range | 0.005%～5%FS/S | |
8 | Force Control Rate Accuracy | rate＜0.05%FSat this rate,±1%within the set value； rate≥0.05%FSat this rate,±0.5%within the set value； | |
9 | Deformation Rate Range | 0.005～5%FS/s； | |
10 | Deformation Rate Accuracy | rate＜0.05%FS/swhen,of the set value±1%maximum； rate≥0.05%FS/swhen,of the set value±0.5%maximum； | |
11 | Maximum Displacement Speed | 500mm/min； | |
12 | Displacement Speed Accuracy | of the set value±0.2%maximum； | |
13 | Constant Force, Deformation and Displacement Control Range | 0.5%～100%FS | |
14 | Constant Force, Deformation and Displacement Control Accuracy | set value≥10%FSwhen,of the set value±0.5%maximum set value＜10%FSwhen,of the set value±1%maximum | |
15 | Effective Test Width | 600mm | |
16 | Test Space | 1100mm | |
17 | Power Supply | 220V±10% 50Hz（reliable grounding required） | |
18 | Machine Power | 2200W | |
19 | Main Unit Dimensions(L × W × H) | ≈1150*600*2300mm | ≈1200*650*2400mm |
20 | Control Cabinet Dimensions(L × W × H) | 700x600x750mm | |
21 | Machine Weight | ≈1200kg | ≈1300kg |
22 | Control Cabinet Weight | ≈30kg | |
