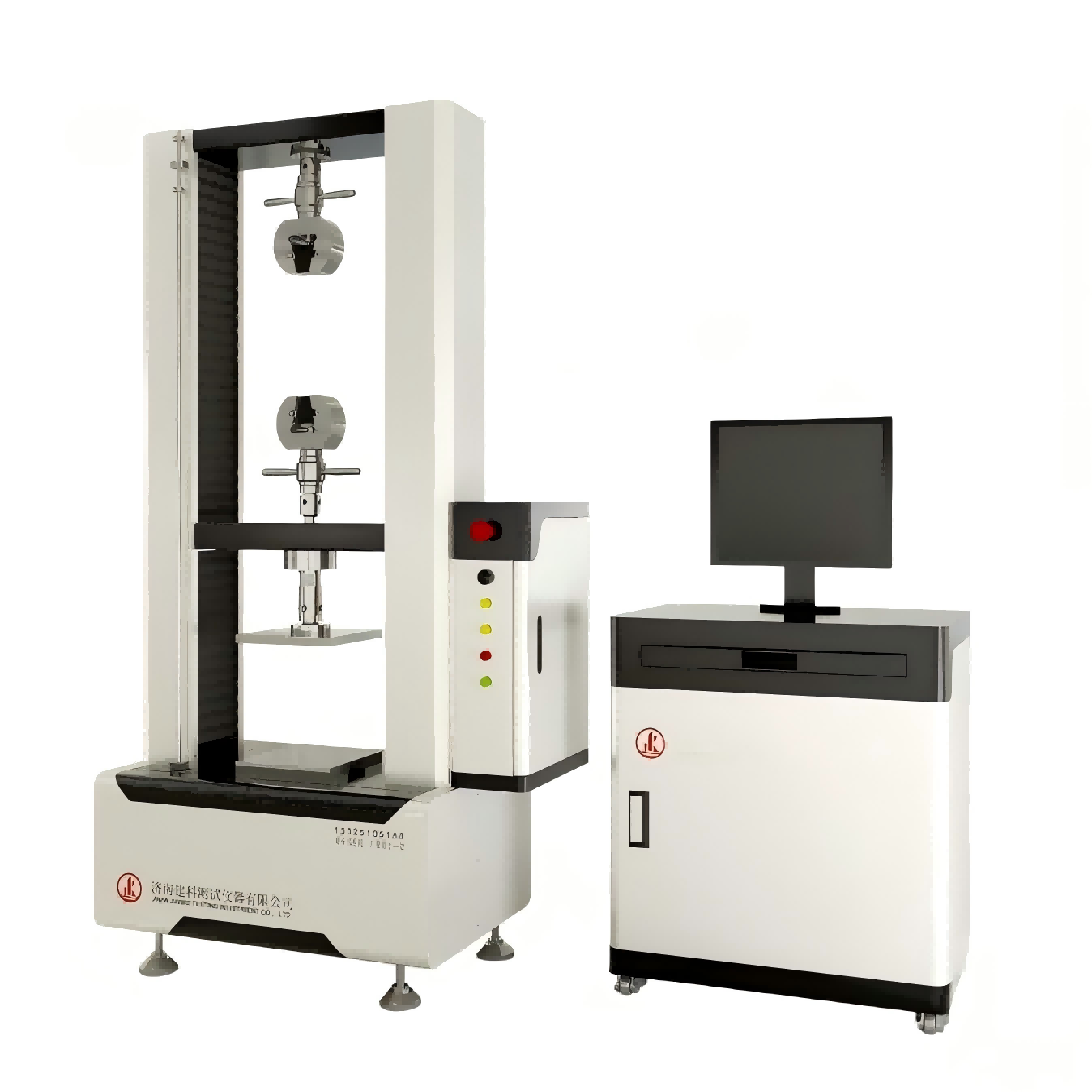

Product name：Microcomputer-Controlled Electronic Universal Testing Machine
Product model：WDW-50
PRODUCT FUNCTIONS:It is used for mechanical tests such as tension, compression, bending, shear, peeling, and tearing with a maximum force of less than 50kN. By selecting different test fixtures, it can complete the mechanical property testing of metallic materials and non-metallic materials.
COMPLIANCE STANDARDS:
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039, ASTM D3479, ASTM E517, ASTM D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-1, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN 12311-1, EN 13707, UNE 104-242, ASTM D4434, ASTM D6878, ISO 37, ISO 34
Not listed in detail; additional standards can be added as needed.
PRODUCT FEATURES:
High-strength optical axes fix the upper crossbeam and workbench to form a high-rigidity gantry-type main machine frame;
Transmission structure consisting of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw to realize the up and down movement of the crossbeam, and the test process is implemented through measurement and control software;
High-precision spoke-type/S-type force sensor with a force measurement accuracy of Grade 0.5;
A variety of complete test fixtures, connected by bolts + simple nut locking, enabling easy operation;
Equipped with extensometer, displacement meter, and large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system with built-in various testing method standards, enabling automatic control of the test process. Data can be saved and exported, and the system can be connected to multiple networked companies;
The bottom of the main machine is designed with stainless steel adjustable leveling feet, facilitating equipment positioning and later adjustment;
Modular electrical control box for easy troubleshooting;
Equipped with test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator lights for operation status prompts, voice operation prompts, and an emergency stop switch;

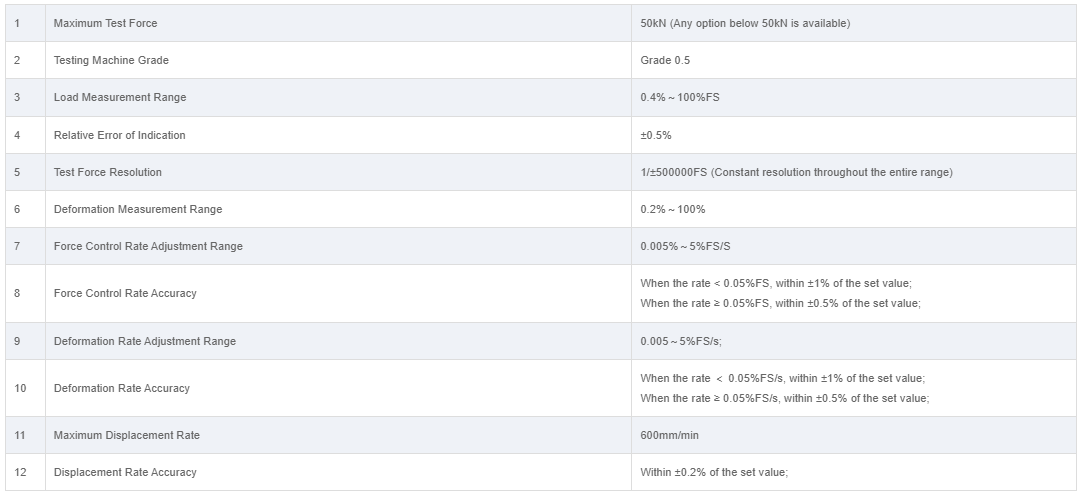

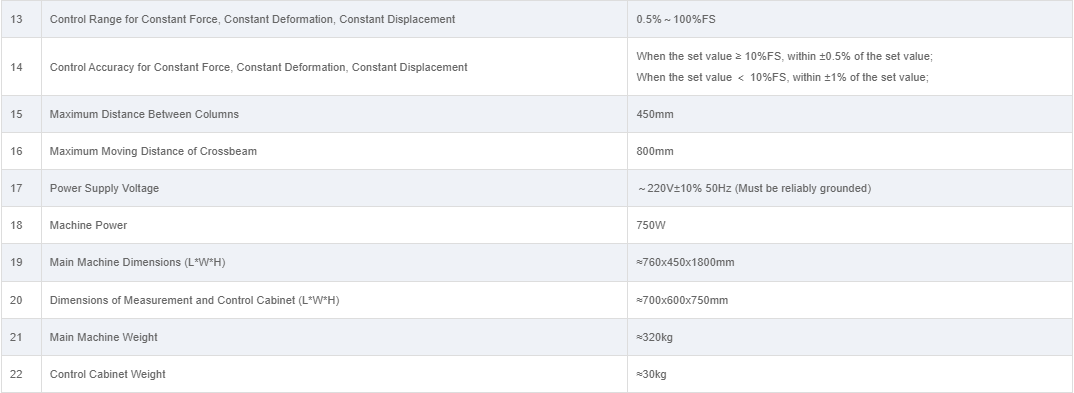

PRODUCT PARAMETERS:

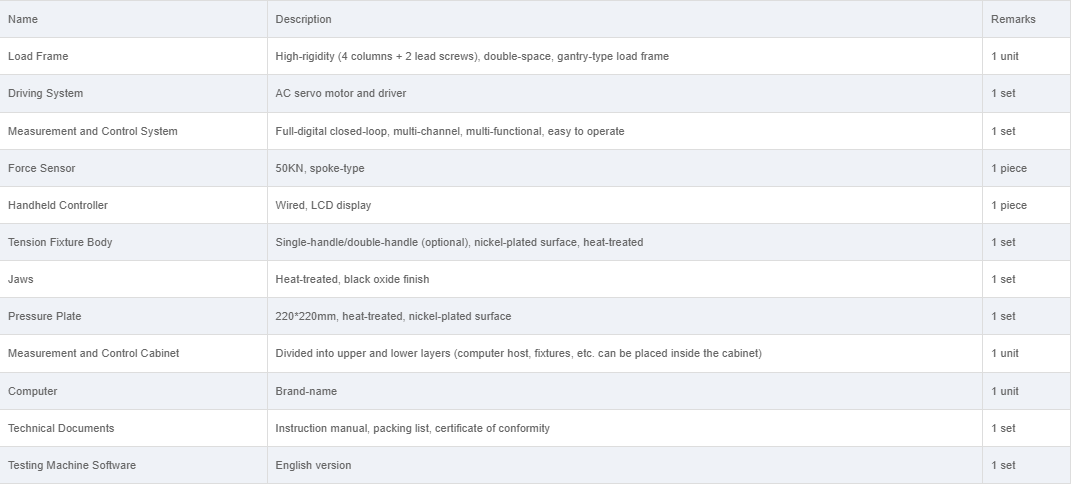

Product Configuration (Subject to the final order):
