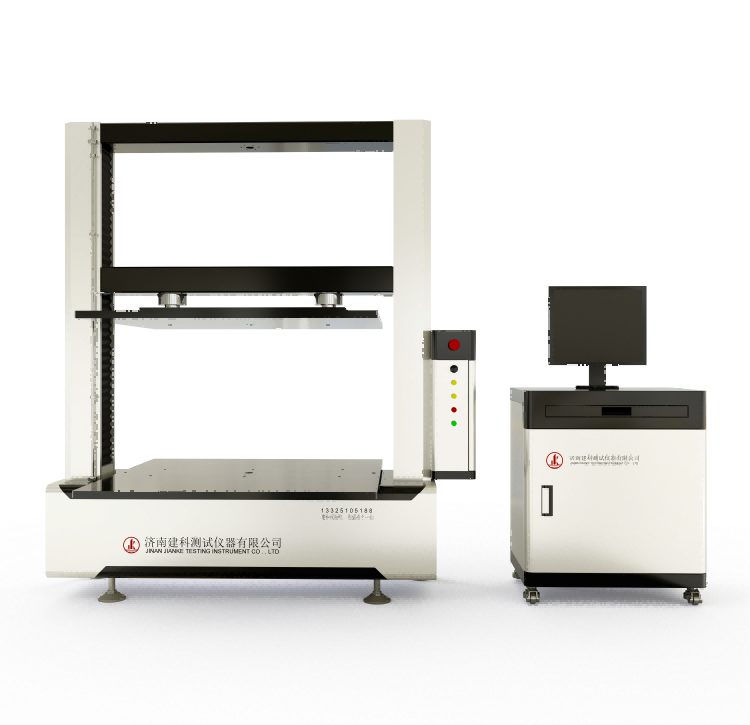

Product name: Microcomputer controlled packaging box pressure testing machine
Product model: WDW-50BZX
Product function:
For transport packaging, use the pressure testing machine to conduct compression test and static load stacking test (free loading plate/free load) to evaluate the compressive strength of the transport packaging when under pressure and the protection ability of the packaging to the contents.
The computer software measurement and control system displays the test force, packaging box deformation, fixed pressure deformation, fixed deformation pressure, maximum crushing force, maximum test force, and test curve in real time.
Adding accessories can complete the material tensile test of the transport packaging.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, compression and universal testing machines
JJG 475 Electronic universal testing machine
GB/T4857.3 Basic tests for packaging and transport packages Part 3
GB/T4857.4 Basic tests for packaging and transport packages Part 4
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum Test Force | 50kN（50KNoptional sensor below） |
2 | Testing Machine Accuracy Class | 0.5class |
3 | Load Measurement Range | 0.5%～100%FS（0.5class） |
4 | Relative Indication Error | ±0.5% |
5 | Test Force Resolution | 1/±500000FS（constant throughout the range） |
6 | Deformation Measurement Range | 0.2%～100% FS |
7 | Force Control Rate Range | 0.005%～5%FS/S |
8 | Force Control Rate Accuracy | rate＜0.05%FSat this rate,±1%within the set value； rate≥0.05%FSat this rate,±0.5%within the set value； |
9 | Deformation Rate Range | 0.005～5%FS/s； |
10 | Deformation Rate Accuracy | rate＜0.05%FS/swhen,of the set value±1%maximum； rate≥0.05%FS/swhen,of the set value±0.5%maximum； |
11 | Displacement Speed Range | 0.01～500mm/min； |
12 | Displacement Speed Accuracy | of the set value±0.2%maximum； |
13 | Constant Force, Deformation and Displacement Control Range | 0.5%～100%FS |
14 | Constant Force, Deformation and Displacement Control Accuracy | set value≥10%FSwhen,of the set value±0.5%maximum set value＜10%FSwhen,of the set value±1%maximum |
15 | Effective Test Width | 1100mm（customizable） |
16 | Maximum Distance Between Compression Platens | 1000mm（custom height available） |
17 | Upper、Lower Platen Dimensions | 1000*1000mm（customizable） |
18 | Power Supply | ～220V±10% 50Hz（reliable grounding required） |
19 | Machine Power | 750W |
20 | Main Unit Dimensions | ≈1650x900x2000mm |
21 | Computer Control Cabinet Dimensions | ≈700*600*750mm |
22 | Machine Weight | ≈1200kg |
23 | Control Cabinet Weight | ≈30kg |
