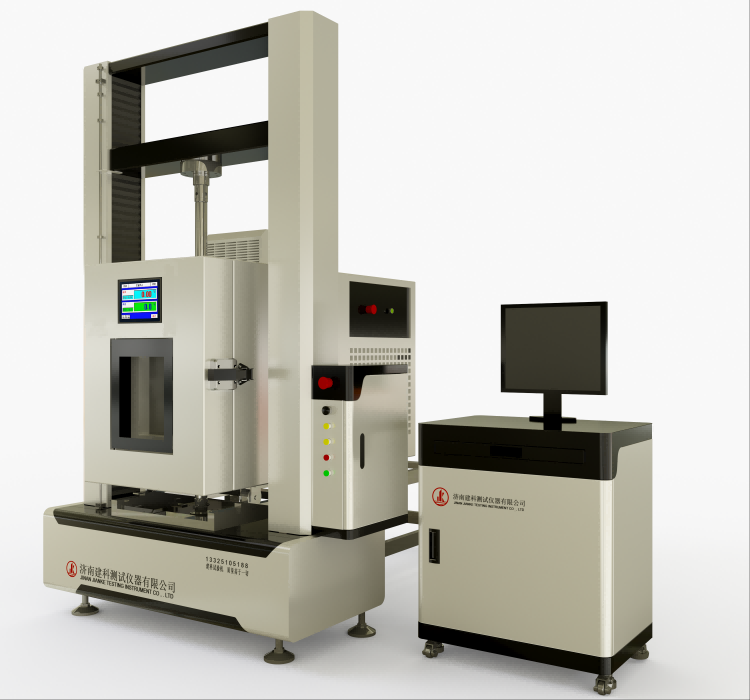

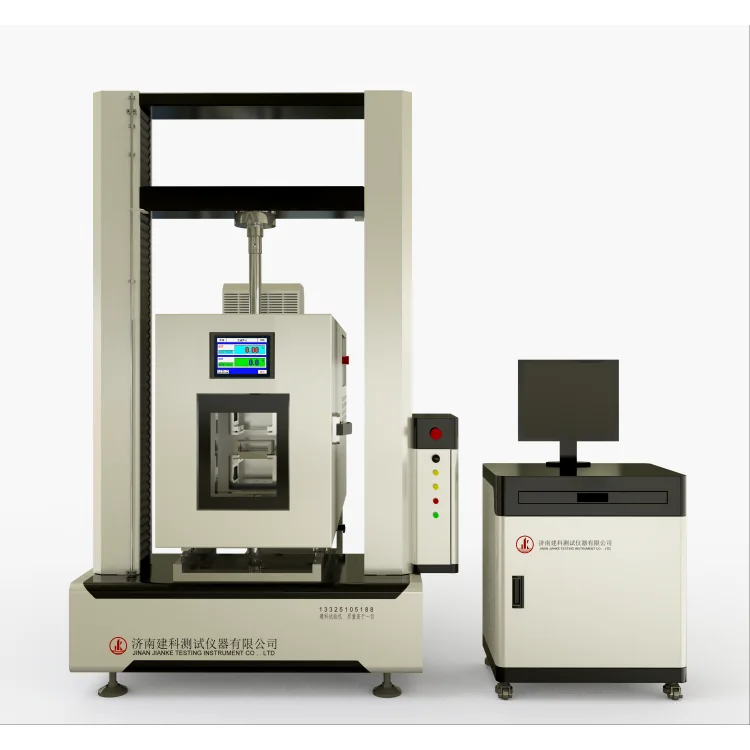

Product Name: Microcomputer-Controlled High-Low Temperature Tensile Testing Machine
Product model：WDW-50GDW
Product Application:It is used for testing the mechanical properties of various sealing materials, such as tensile adhesion, sustained adhesion, and peel adhesion of sealants, as well as the mechanical performance tests of aluminum alloy thermal insulation profiles including transverse tension, longitudinal shear, and torsion tests. Equipped with a high-low temperature test chamber, the equipment can complete tests at ambient temperatures ranging from -40℃ to 150℃.
APPLICABLE STANDARDS:
GB/T 16491 Electronic Universal Testing Machine
GB/T 2611 General Technical Requirements for Testing Machines
JJG 139 Tensile, Compression and Universal Testing Machines
JJG 475 Electronic Universal Testing Machines
GB/T 13477.8 Test Methods for Building Sealants - Part 8: Determination of Tensile Adhesion
GB/T 13477.10 Test Methods for Building Sealants - Part 10: Determination of Adhesion at Specified Elongation
GB/T 13477.17 Test Methods for Building Sealants - Part 17: Determination of Elastic Recovery Rate
GB 16776 Structural Silicone Sealants for Building
JC/T 976 Sealants for Joints of Roads and Bridges
JC/T 881-2017 Building Sealants for Concrete Joints
JC/T 882-2001 Sealants for Curtain Wall Glass Joints
JC/T 884-2016 Building Sealants for Metal Plates
JC/T 885-2016 Mildewproof Building Sealants
JG/T 475-2015 Structural Silicone Sealants for Building Curtain Walls
GB/T 14683-2017 Silicone and Modified Silicone Building Sealants
GB/T 23261-2009 Building Sealants for Stone
GB/T 29755-2013 Elastic Sealants for Insulating Glass
JT/T 740-2015 Hot-applied Sealants for Pavement
JG/T 471-2015 Elastic Sealants for Insulating Glass in Building Doors, Windows and Curtain Walls
GB 24266-2009 Structural Silicone Sealants for Insulating Glass
GB/T 24267-2009 Flame-retardant Building Sealants
JC/T 482-2003 Polyurethane Building Sealants
JC/T 483-2006 Polysulfide Building Sealants
JC/T 484-2006 Acrylate Building Sealants
JC/T 485-2007 Elastic Sealants for Building Windows
GB/T 28289 Test Methods for Composite Properties of Thermal Insulation Aluminum Alloy Profiles
GB/T228.1 Tensile Testing of Metallic Materials
GB/T7314 Test Methods for Compression Testing of Metallic Materials at Room Temperature
GB/T232 Test Methods for Bending Testing of Metallic Materials
GB 5237.1 Wrought Aluminum Alloy Extruded Profiles for Architecture - Part 1: Base Material
GB 5237.2 Wrought Aluminum Alloy Extruded Profiles for Architecture - Part 2: Anodized Profiles
GB 5237.3 Wrought Aluminum Alloy Extruded Profiles for Architecture - Part 3: Electrophoretic Coated Profiles
GB 5237.4 Wrought Aluminum Alloy Extruded Profiles for Architecture - Part 4: Powder Coated Profiles
GB 5237.5 Wrought Aluminum Alloy Extruded Profiles for Architecture - Part 5: Fluorocarbon Coated Profiles
GB 5237.6 Wrought Aluminum Alloy Extruded Profiles for Architecture - Part 6
GB/T 3880.1～3 Wrought Aluminium and Aluminium Alloy Plates and Sheets for General Engineering Purposes
GB/T 5237.1～6 Wrought Aluminum Alloy Extruded Profiles for Architecture
PRODUCT FEATURES:
High-strength optical axis fixed upper crossbeam and workbench form a high-rigidity gantry frame main machine;
The transmission structure of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the crossbeam, and the test process is realized through measurement and control software;
High-precision spoke-type/S-type load cell with a force measurement accuracy of grade 0.5;
A variety of complete test fixtures with pin connection and simple nut locking for easy operation;
Equipped with extensometer, displacement meter and large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system with built-in various test method standards, automatic control of the test process, data can be saved and exported, and can be networked with multiple networking companies;
Stainless steel adjustable leveling feet are designed at the bottom of the main machine to facilitate equipment positioning and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light running status prompt, voice running prompt, and emergency stop switch designed;

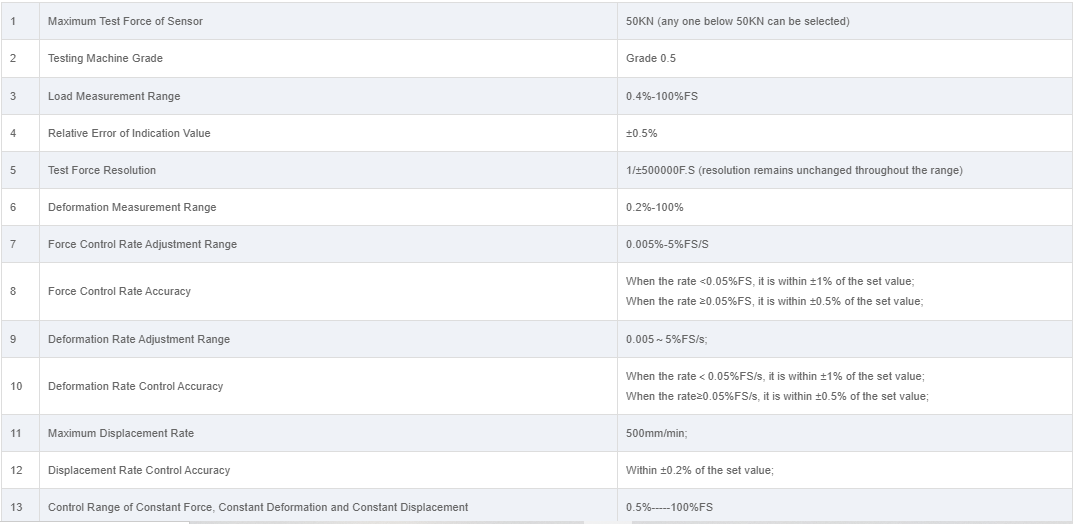

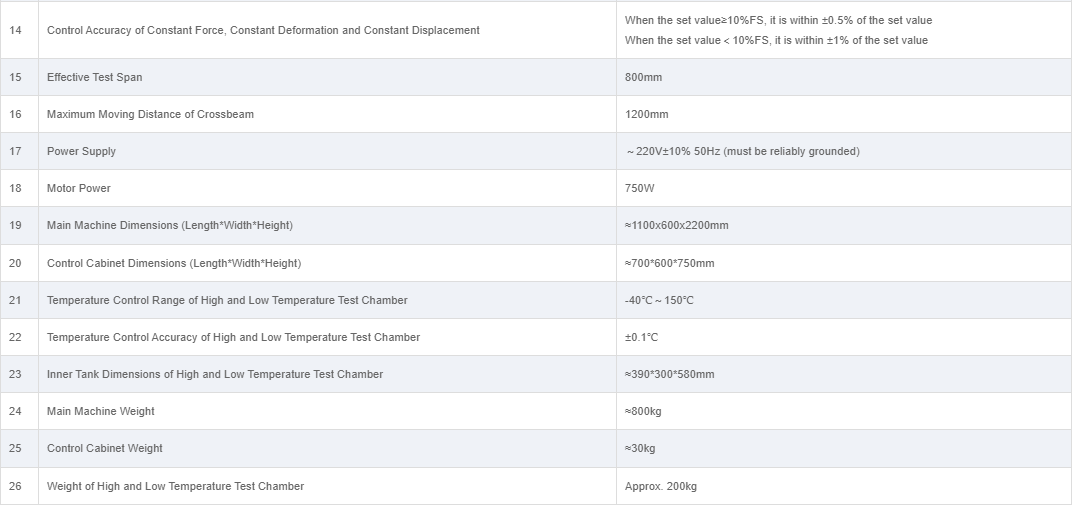

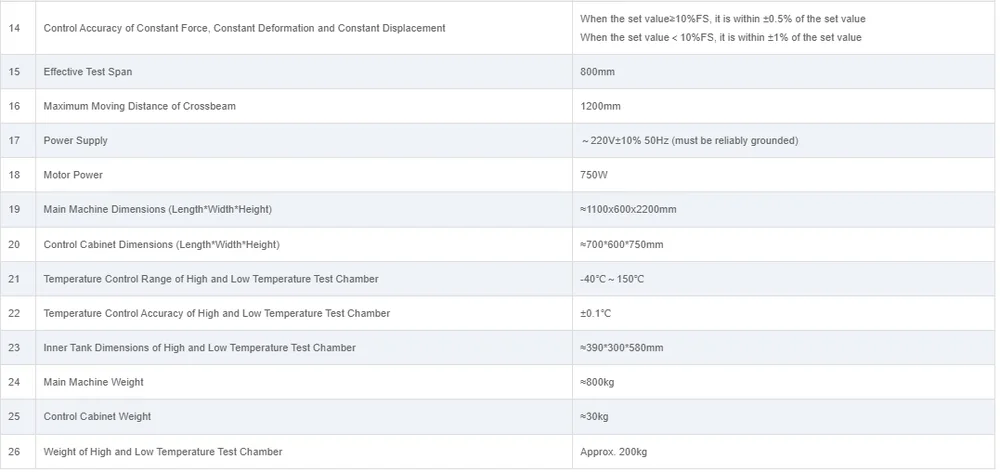

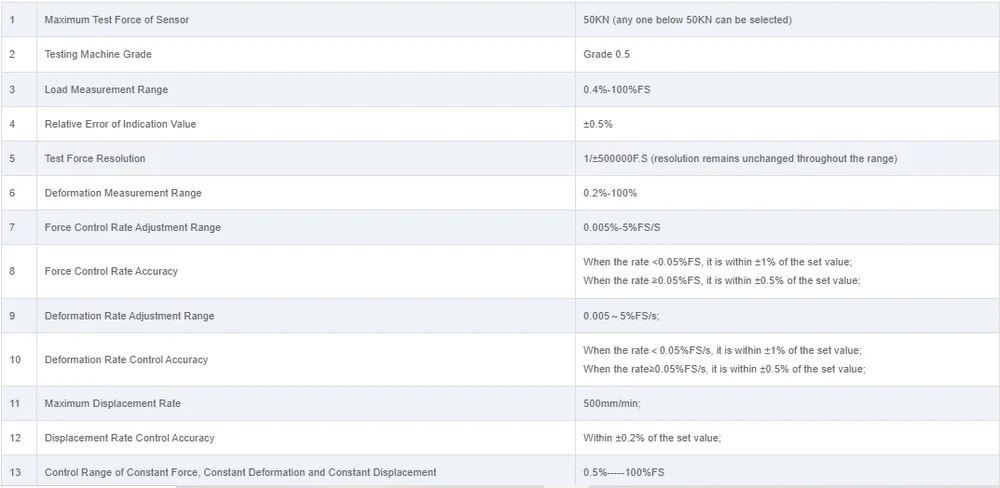

PRODUCT PARAMETERS:

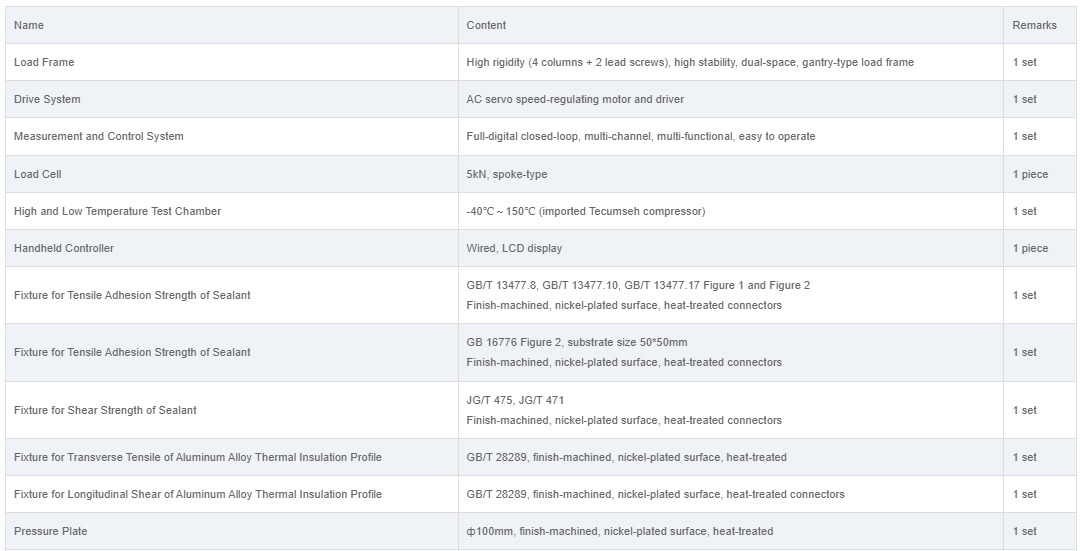

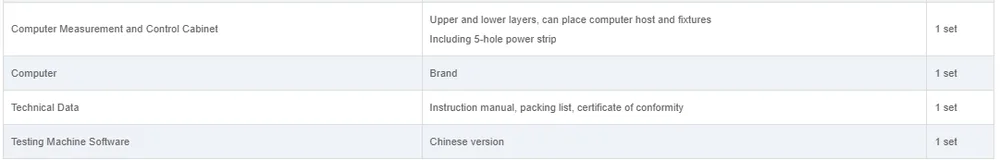

PRODUCT CONFIGURATION:
