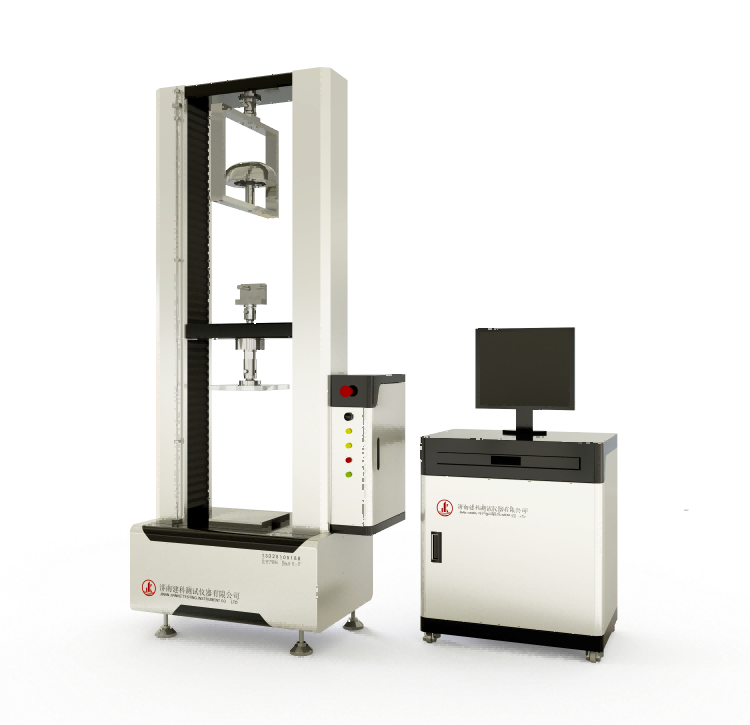

Product name: Microcomputer-controlled safety net rope cap mechanical testing machine
Product model: WDW-50G
Product function: Safety helmet lateral pressure resistance (lateral rigidity) performance test and chin strap strength test, safety rope breaking strength, safety net breaking strength × breaking elongation, joint tensile strength, trapezoidal tear strength, open eye buckle strength test, safety net breaking strength × breaking elongation test.
Based on the standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tension, compression and universal testing machines
JJG 475 Electronic universal testing machine
GB 2811-2019 Head protection Safety helmet
GBT 2812-2006 Safety helmet test method
GB 5725 Safety net
GBT 6096 Fall protection safety belt system performance test method
GB 24543 Fall protection safety rope
GBT 8834 Fiber rope Determination of physical and mechanical properties
GA 494 Standard fire protection equipment for fall protection
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Load SensorMaximum Test Force | 50KN |
2 | Testing Machine Accuracy Class | 0.5class |
3 | Load Measurement Range | 0.4%-100%FS（0.5class） |
4 | Relative Indication Error | ±0.5%（0.5class） |
5 | Test Force Resolution | 1/±500000F.S（constant throughout the range） |
6 | Deformation Measurement Range | 0.2%-100% |
7 | Force Control Rate Range | 0.005%-5%FS/S |
8 | Force Control Rate Accuracy | rate <0.05%FSat this rate,±1%within the set value； rate ≥0.05%FSat this rate,±0.5%within the set value； |
9 | Deformation Rate Range | 0.005～5%FS/s； |
10 | Deformation Rate Accuracy | rate＜0.05%FS/swhen,of the set value±1%maximum； rate≥0.05%FS/swhen,of the set value±0.5%maximum； |
11 | MaximumDisplacementrate | 600mm/min； |
12 | Displacement Speed Accuracy | of the set value±0.2%maximum； |
13 | Constant Force, Deformation and Displacement Control Range | 0.5%-----100%FS |
14 | Constant Force, Deformation and Displacement Control Accuracy | set value≥10%FSwhen,of the set value±0.5%maximum set value＜10%FSwhen,of the set value±1%maximum |
15 | Maximum Column Spacing | 450mm |
16 | CrossheadMaximumTravel | 1100mm |
17 | Large Deformation Measurement Range | 10-1000mm |
18 | Power Supply | ～220V±10% 50Hz（reliable grounding required） |
19 | MotorPower | 750W |
20 | Main Unit Dimensions(L × W × H) | ≈760x450x2100mm |
21 | Control Cabinet Dimensions(L × W × H) | ≈700*600*750mm |
22 | MainUnitWeight | ≈350kg |
23 | Control Cabinet Weight | ≈30kg |
