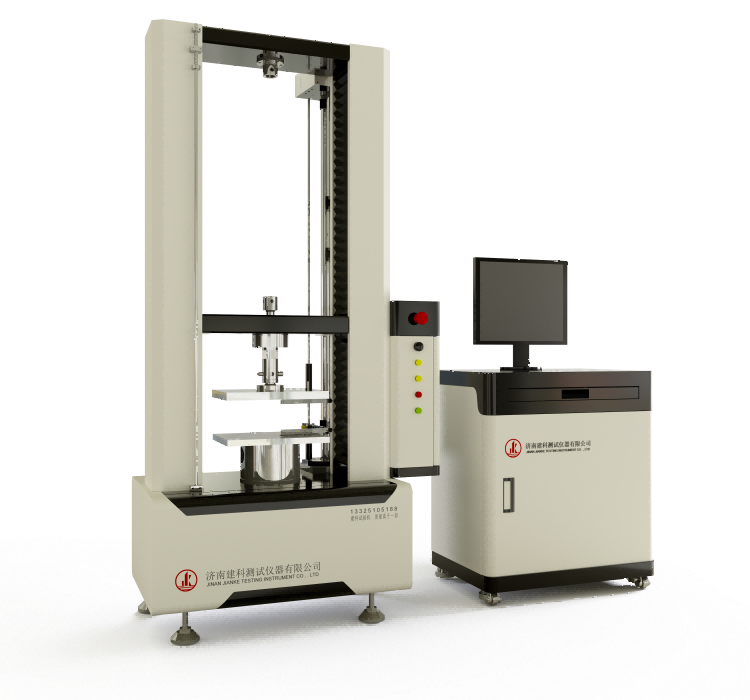

Product name: Microcomputer controlled ring stiffness and ring flexibility testing machine
Product model: WDW-50H
Product function: Used for pipes with nominal diameter DN≤315mm; various metals, non-metals, composite materials, special-shaped pipes for ring stiffness test, ring flexibility test, flattening test, uniform load, creep ratio test continuous test (1000h/42d), deflection level and other mechanical performance index testing and research.
Based on the standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, pressure and universal testing machines
JJG 475 Electronic universal testing machine
GB/T 9647 Determination of ring stiffness of thermoplastic plastic pipes
GB/T 18042 Test method for creep ratio of thermoplastic plastic pipes
GB/T 18477.1~3 Unplasticized polyvinyl chloride (PVC-U) structural wall pipe system for buried drainage
GB/T 21238 Glass fiber reinforced plastic sand pipe
CJ/T 270 Polyethylene plastic steel winding drainage pipe
JT/T 529 Plastic corrugated pipe for prestressed concrete bridges
JG 225 Metal corrugated pipe for prestressed concrete
GB/T 18742.1 Polypropylene pipe system for hot and cold water
GB/T 2918 Standard environment for plastic specimen conditioning and testing
GB/T 8806 Plastic pipe size measurement method
GB/T 19472.1～2 Polyethylene (PE) structural wall pipe system for buried
EN 13476-1 Thermoplastic plastic pipe system for non-pressure buried drainage and sewage
ISO 9969 Determination of ring stiffness of thermoplastic plastic pipe
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum Test Force | 50kN（50KNselect one of the following） |
2 | Testing Machine Accuracy Class | 0.5class |
3 | Load Measurement Range | 0.4%～100%FS |
4 | Relative Indication Error | ±0.5% |
5 | Test Force Resolution | 1/±500000FS（constant throughout the range） |
6 | Deformation Measurement Range | 0.2%～100% FS |
7 | Force Control Rate Range | 0.005%～5%FS/S |
8 | Force Control Rate Accuracy | rate＜0.05%FSat this rate,±1%within the set value； rate≥0.05%FSat this rate,±0.5%within the set value； |
9 | Deformation Rate Range | 0.005～5%FS/s； |
10 | Deformation Rate Accuracy | rate＜0.05%FS/swhen,of the set value±1%maximum； rate≥0.05%FS/swhen,of the set value±0.5%maximum； |
11 | Displacement Speed Range | 0.01～600mm/min； |
12 | Displacement Speed Accuracy | of the set value±0.2%maximum； |
13 | Constant Force, Deformation and Displacement Control Range | 0.5%～100%FS |
14 | Constant Force, Deformation and Displacement Control Accuracy | set value≥10%FSwhen,of the set value±0.5%maximum set value＜10%FSwhen,of the set value±1%maximum |
15 | Maximum Column Spacing | 450mm |
16 | Maximum Crosshead Travel | 1100mm |
17 | Internal Deformation Measurement Range | 45～1000mm |
18 | Power Supply | ～220V±10% 50Hz（reliable grounding required） |
19 | Machine Power | 750W |
20 | Main Unit Dimensions(L × W × H) | ≈760x450x1800mm |
21 | Control Cabinet Dimensions(L × W × H) | ≈approx.700x600x750mm |
22 | Main Unit Weight | ≈350kg |
23 | Control Cabinet Weight | ≈30kg |
