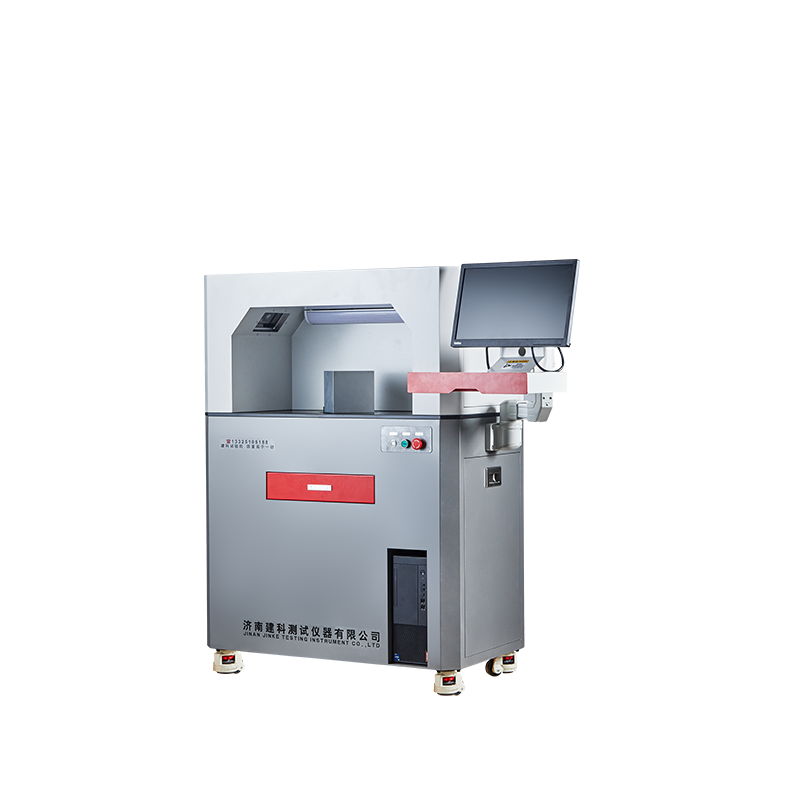

Product name: Concrete specimen geometric deviation measuring instrument
Product model: GD-M-100/150
Product introduction: Mainly used to measure the length, width and height dimensions of standard concrete test blocks, the angle between adjacent surfaces, the flatness of the compressive bearing surface and other indicators.
Based on the standard: GB/T 50081 Concrete physical and mechanical properties test method standard;
Applicable test pieces: 1503mm, 1003mm, strong versatility;
Measurement principle: Two sets of 3D high-precision measurement cameras are used for measurement, and the length, width, height, adjacent surface angles, and pressure-bearing surface flatness are measured within 10 seconds;
Original data: The measured data can be saved and exported, without the need for personnel to write original records, which improves the detection efficiency;
Data upload: The measurement data can be connected to the detection management system, and the data is automatically uploaded to realize digital management;
Sample information: Supports scanning sample barcodes with scanners to improve detection efficiency;
Serial number | Parameter | Parameter |
1 | Length resolution | 0.01mm |
2 | Length measurement accuracy | ≤±0.05mm |
3 | Adjacent surface angular resolution | 0.02° |
4 | Adjacent surface angle measurement accuracy | ≤±0.1° |
5 | Flatness resolution | 0.01mm |
6 | Flatness accuracy | ≤±0.0005 of side length |
7 | Single side scanning speed | 0.5s |
8 | Detect light source | Blue LED light source |
9 | Camera pixels | 500W |
10 | Size | 1200*500*1400 |
11 | Power supply | 220V |
12 | Weight | ≈100kg |
