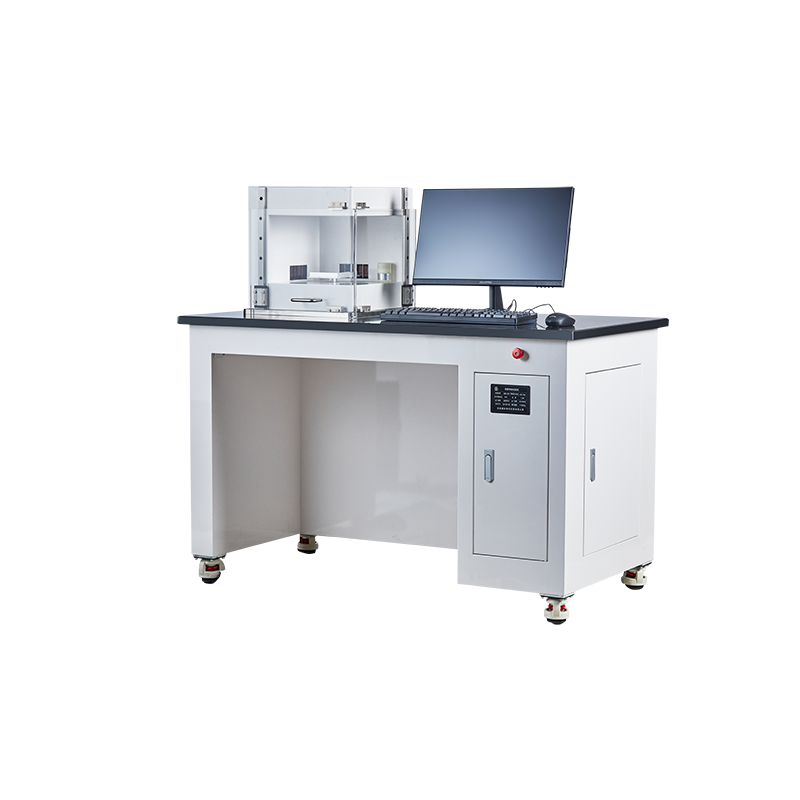

Product name: Building material apparent density tester
Product model: MD-Auto-I
Product function: Used for the determination of apparent density deviation of building materials and other materials (the specimen is within the sensor measurement range). The equipment adopts imported non-contact sensors, electromagnetic force internal calibration weight sensors, and multi-channel automatic acquisition, which greatly improves the detection efficiency;
Based on standards:
GB/T 6342 Plastic foam and rubber Determination of linear dimensions;
GB/T 6343 Determination of apparent density of foam plastics and rubber;
GB/T 8810 Determination of water absorption of rigid foam plastics;
GB/T 8813 Determination of compression properties of rigid foam plastics;
GB/T 10801.1 Molded polystyrene foam plastics for thermal insulation;
GB/T 10801.2 Extruded polystyrene foam plastics for thermal insulation;
Click the mouse to complete the automatic measurement of length direction (five measuring points, three measurements for each measuring point) + width (five measuring points, three measurements for each measuring point) + thickness (five measuring points, three measurements for each measuring point) + weight and other data;
Industrial computer control, more stable operation;
Industrial-grade electromagnetic force weighing module, internal calibration, seven-level anti-vibration filtering, overload protection, temperature compensation and other functions;
Imported non-contact laser sensor, high test accuracy and good repeatability;
Marble countertop, shockproof and wear-resistant;
Original data: The measured data can be saved and exported, without the need for personnel to write original records, which improves the detection efficiency;
Data upload: The measured data can be connected to the detection management system, and the data is automatically uploaded to realize digital management;
Sample information: Support scanning sample barcodes with scanners to improve detection efficiency;
序号 | 传统方式 | 本产品 |
1 | 测量器具：游标卡尺+电子天平 | 测量器具：建材表观密度试验机 |
2 | 测量方法：人工一次次测量，人工一次次称重，人工一次次计算，人工一次次记录 | 本产品测试效率（五个/组）：设置样品信息，五次取放+五次点击鼠标，完成所有测量，保存/打印原始记录，且可与检测系统实时上传。 |
3 | 尺寸测量数据量（五个/组）：225个 | |
4 | 中值数据统计量（五个/组）：75个 | |
5 | 中值平均值计算量（五个/组）：15个 | |
6 | 质量+体积+表观密度计算量（五个/组）：15个 | |
7 | 原始数据总填写量（五个/组）：330个 | |
8 | 记录方式：人工记录 | |
9 | 计算方式：人工计算 |
序号 | 项目 | 参数 |
1 | 尺寸传感器数量 | 15只原装进口非接触式传感器 |
2 | 尺寸传感器检测范围 | ±100mm |
3 | 尺寸传感器检测满量程 | 200mm |
4 | 尺寸传感器线性精度 | ±0.5% F.S. |
5 | 尺寸传感器测量重复性 | 60um |
6 | 尺寸传感器温度漂移特性（参考值） | ±0.08% F.S./℃ |
7 | 适用试件尺寸 | 100*100*（10～100）mm |
6 | 重量传感器最大称量 | 200g |
7 | 重量传感器可读性 | 0.001g |
8 | 重量传感器称量重复性 | ±1% |
9 | 计算机类型 | 工控机（标配15个尺寸通道+1个重量通道，可扩展） |
10 | 主机尺寸 | 1300*700*1200mm |
11 | 设备重量 | 约200kg |
12 | 电压及功率 | 220V，0.5KW |
