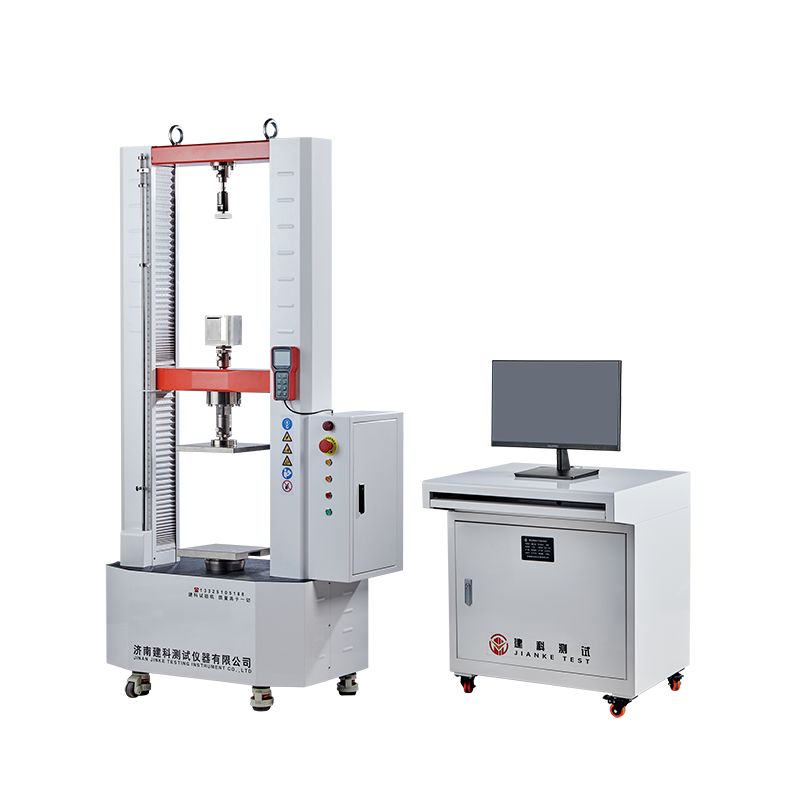

Product name: Microcomputer-controlled mortar bond tensile testing machine
Product model: WDW-5
Product function: Used for testing the bond tensile strength of building mortar, masonry mortar, and thermal insulation mortar.
Based on the standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, pressure and universal testing machines
JJG 475 Electronic universal testing machine
JGJ/T 70 Standard for basic performance test methods of building mortar
GB/T 25181 Premixed mortar
JC/T 984 Polymer cement waterproof mortar
JC/T 985 Cement-based self-leveling mortar for floor
JC/T 1023 Gypsum-based self-leveling mortar
JC/T 1024 Wall facing mortar
JC/T 2326 Leveling mortar for construction
JGJ/T 230 Premixed mortar
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum test force | 5KN (select a capacity below 50KN) |
2 | Testing machine accuracy class | Class 0.5 |
3 | Load measuring range | 0.4%～100%FS |
4 | Relative indication error | ±0.5% |
5 | Test force resolution | 1/±500000FS (the resolution remains unchanged throughout the process) |
6 | Deformation measurement range | 0.2%～100% |
7 | Force control rate adjustment range | 0.005%～5%FS/S |
8 | Force control rate accuracy | When the rate is <0.05%FS, it is within ±1% of the set value; When the rate is ≥0.05%FS, it is within ±0.5% of the set value; |
9 | Deformation rate adjustment range | 0.005～5%FS/s； |
10 | Deformation rate control accuracy | When the rate is <0.05%FS/s, it is within ±1% of the set value; When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value; |
11 | Maximum displacement rate | 600mm/min |
12 | Displacement rate control accuracy | Within ±0.2% of the set value; |
13 | Constant force, deformation and displacement control range | 0.5%～100%FS |
14 | Constant force, deformation and displacement control accuracy | When the set value is ≥10%FS, it should be within ±0.5% of the set value. When the set value is <10%FS, it is within ±1% of the set value. |
15 | Effective test span | 450mm |
16 | Effective tensile test space | 800mm |
17 | Supply voltage | ~220V±10% 50Hz (must be reliably grounded) |
18 | Machine power | 750W |
19 | Load frame size (length*width*height) | ≈760x450x1800mm |
20 | Measurement and control cabinet size (length*width*height) | ≈About 700x600x750mm |
21 | Load frame weight | ≈320kg |
22 | Control cabinet weight | ≈30kg |
