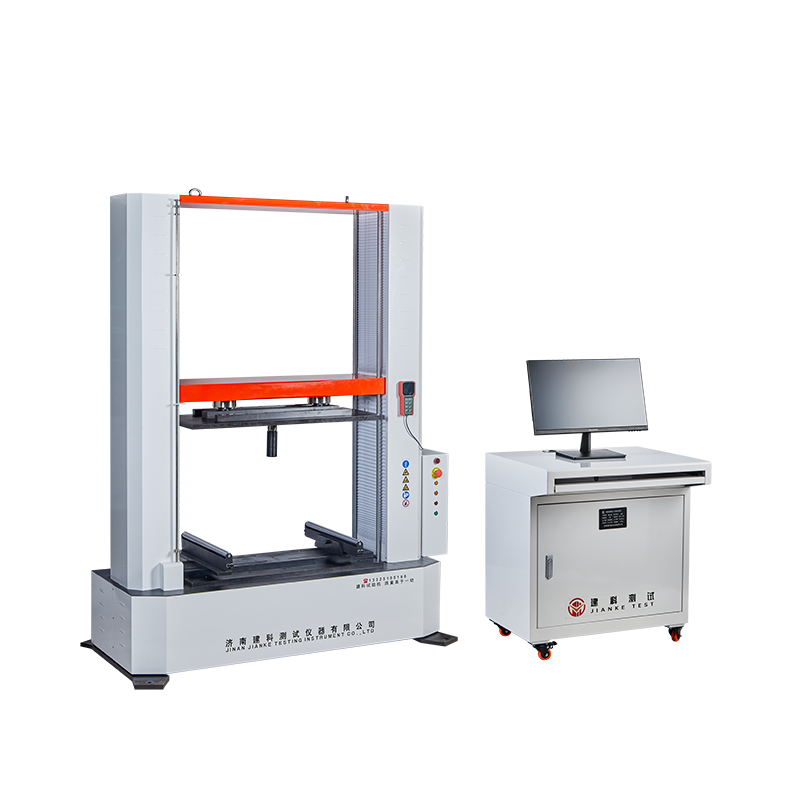

Product name: Microcomputer controlled curb flexural strength tester
Product model: WDW-50LYS-1100/ WDW-100LYS-1100
Product function: Used for curb flexural strength test.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, pressure and universal testing machines
JJG 475 Electronic universal testing machine
JC/T 899 Concrete curb
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum test force | 50kN | 100kN |
2 | Testing machine accuracy class | Class 0.5 | |
3 | Load measuring range | 0.5%～100%FS | |
4 | Relative indication error | ±0.5% | |
5 | Test force resolution | 1/±500000FS (the resolution remains unchanged throughout the process) | |
6 | Deformation measurement range | 0.2%～100% FS | |
7 | Force control rate adjustment range | 0.005%～5%FS/S | |
8 | Force control rate accuracy | When the rate is <0.05%FS, it is within ±1% of the set value; When the rate is ≥0.05%FS, it is within ±0.5% of the set value; | |
9 | Deformation rate adjustment range | 0.005～5%FS/s； | |
10 | Deformation rate control accuracy | When the rate is <0.05%FS/s, it is within ±1% of the set value; When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value; | |
11 | Displacement rate adjustment range | 0.01～500mm/min； | |
12 | Displacement rate control accuracy | Within ±0.2% of the set value; | |
13 | Constant force, deformation and displacement control range | 0.5%～100%FS | |
14 | Constant force, deformation and displacement control accuracy | When the set value is ≥10%FS, it should be within ±0.5% of the set value. When the set value is <10%FS, it is within ±1% of the set value. | |
15 | Effective test span | 1100mm | |
16 | Maximum crosshead travel | 1000mm | |
17 | Supply voltage | ~220V±10% 50Hz (must be reliably grounded) | |
18 | Machine power | 750W | 2200W |
19 | Load frame size (length*width*height) | ≈1650x900x2000mm | ≈1650x900x2000mm |
20 | Control cabinet size (length*width*height) | ≈700*600*750mm | |
21 | Load frame weight | ≈1200kg | ≈1400kg |
22 | Control cabinet weight | ≈30kg | |
