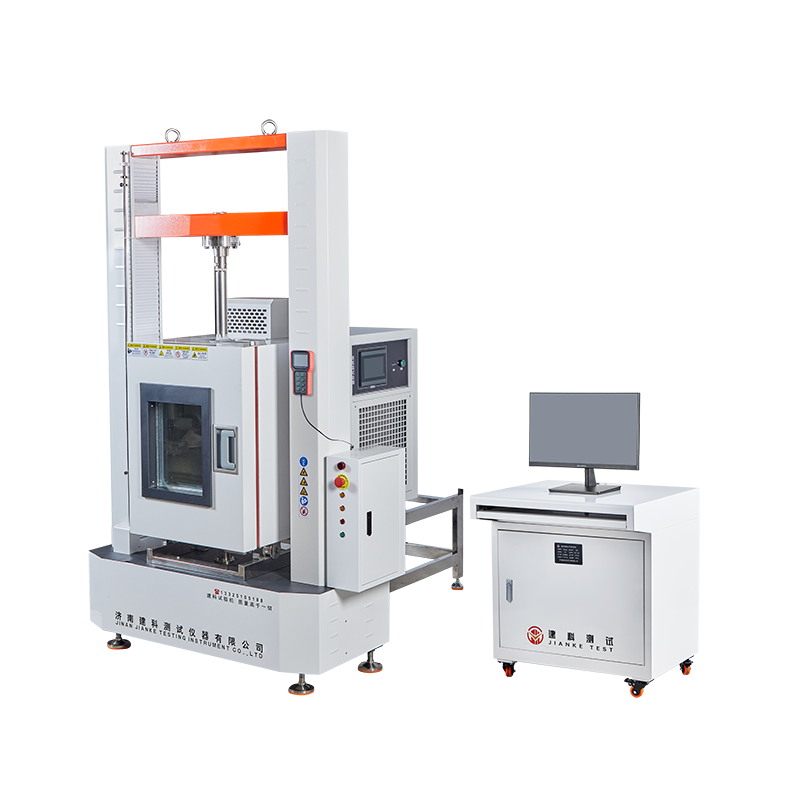

Product name: Microcomputer controlled asphalt concrete high and low temperature testing machine
Product model: WDW-50GDW/ WDW-100GDW
Product function: used for uniaxial compression test, tensile test, beam bending test, bending compression rebound modulus, bending stress compression rebound modulus, compression stress, compression strain, compression deformation, low temperature crack resistance, elastic stage compression stiffness modulus, compression failure stiffness modulus, vertical deformation, horizontal deformation and other tests of asphalt mixture specimens at specified temperatures.
Based on the standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, pressure and universal testing machines
JJG 475 Electronic universal testing machine
JTG E 20 Highway engineering asphalt and asphalt mixture test procedures
JTG D 50-Highway asphalt pavement design specifications
JTG D 30 Highway roadbed design specifications
JTG F 40 Highway asphalt pavement construction technical specifications
DL/T 5362 Hydraulic asphalt concrete test procedures
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum load cell capacity | 50KN | 100KN |
2 | Testing machine accuracy class | Class 0.5 | |
3 | Load measuring range | 0.4%-100%FS | |
4 | Relative indication error | ±0.5% | |
5 | Test force resolution | 1/±500000F.S (the resolution remains unchanged throughout the process) | |
6 | Deformation measurement range | 0.2%-100% | |
7 | Force control rate adjustment range | 0.005%-5%FS/S | |
8 | Force control rate accuracy | When the rate is <0.05%FS, it is within ±1% of the set value; When the rate is ≥0.05%FS, it is within ±0.5% of the set value; | |
9 | Deformation rate adjustment range | 0.005～5%FS/s； | |
10 | Deformation rate control accuracy | When the rate is <0.05%FS/s, it is within ±1% of the set value; When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value; | |
11 | Maximum displacement rate | 500mm/min； | |
12 | Displacement rate control accuracy | Within ±0.2% of the set value; | |
13 | Constant force, deformation and displacement control range | 0.5%-----100%FS | |
14 | Constant force, deformation and displacement control accuracy | When the set value is ≥10%FS, it should be within ±0.5% of the set value. When the set value is <10%FS, it is within ±1% of the set value. | |
15 | Effective test span | 800mm | |
16 | Maximum crosshead travel | 1400mm | |
17 | Power supply | ~220V±10% 50Hz (must be reliably grounded) | |
18 | Motor power | 750W | 2200W |
19 | Load frame size (length*width*height) | ≈1100x600x2300mm | ≈1150x650x2400mm |
20 | Control cabinet size (length*width*height) | ≈700*600*750mm | |
21 | High and low temperature test chamber temperature control range | -40℃～150℃ | |
22 | High and low temperature test chamber temperature control accuracy | ±0.1℃ | |
23 | Load frame weight | ≈800kg | ≈1300kg |
24 | Control cabinet weight | ≈30kg | |
25 | High and low temperature test chamber weight | About 200kg | |
