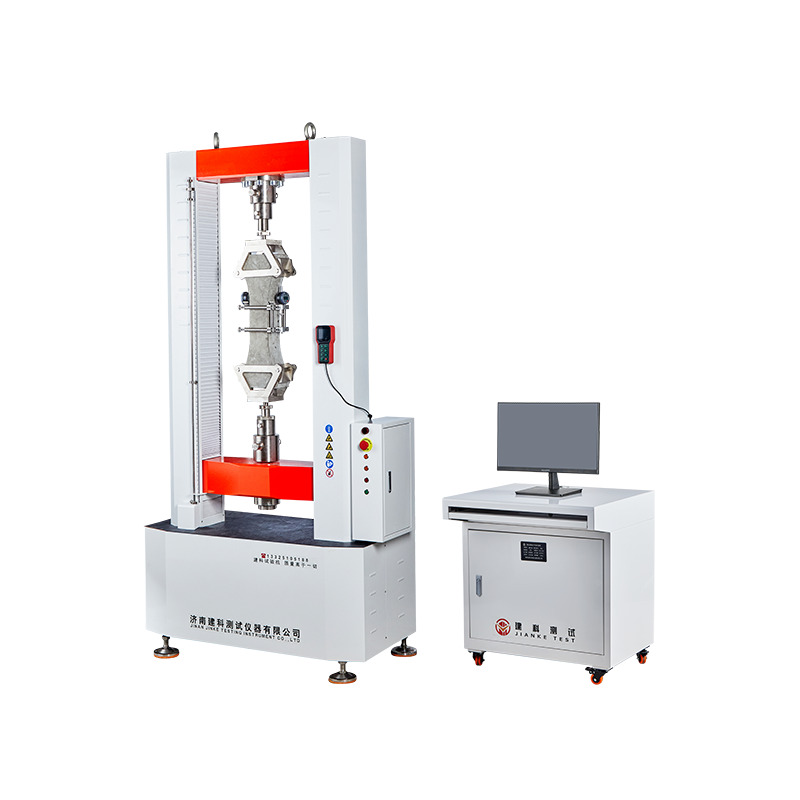

Product name: Microcomputer controlled concrete ultimate tensile testing machine
Product model: WDW-100L/ WDW-200L
Product function: Determine the axial tensile strength, ultimate tensile value and tensile elastic modulus of concrete. Draw the concrete axial tensile load-displacement curve and axial tensile stress-strain curve, obtain the secant elastic modulus of the failure stress, and determine the tensile elastic modulus of concrete.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tension, pressure and universal testing machines
JJG 475 Electronic universal testing machine
SL 352 Hydraulic concrete test procedures
GB/T 50081 Standard test methods for concrete physical properties
DL/T 5150 Hydraulic concrete test procedures
CECS 13 Standard test methods for fiber concrete
T/CBMF 37 Basic properties and test methods of ultra-high performance concrete
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | 最大试验力 | 100kN | 200KN |
2 | 试验机精度等级 | 0.5级 | |
3 | 负荷测量范围 | 0.4%～100%FS | |
4 | 示值相对误差 | ±0.5% | |
5 | 试验力分辨力 | 1/±500000FS（全程分辨力不变） | |
6 | 变形测量范围 | 0.2%～100% FS | |
7 | 力控速率调节范围 | 0.005%～5%FS/S | |
8 | 力控速率控制精度 | 速率＜0.05%FS时，为±1%设定值以内； 速率≥0.05%FS时，为±0.5%设定值以内； | |
9 | 变形速率调节范围 | 0.005～5%FS/s； | |
10 | 变形速率控制精度 | 速率＜0.05%FS/s时，为设定值的±1%以内； 速率≥0.05%FS/s时，为设定值的±0.5%以内； | |
11 | 最大位移速率 | 500mm/min； | |
12 | 位移速率控制精度 | 为设定值的±0.2%以内； | |
13 | 恒力、恒变形、恒位移控制范围 | 0.5%～100%FS | |
14 | 恒力、恒变形、恒位移控制精度 | 设定值≥10%FS时，为设定值的±0.5%以内 设定值＜10%FS时，为设定值的±1%以内 | |
15 | 有效试验跨度 | 600mm | |
16 | 测试空间 | 1100mm | |
17 | 电源电压 | 220V±10% 50Hz（须可靠接地） | |
18 | 机器功率 | 2200W | |
19 | 主机尺寸（长*宽*高） | ≈1150*600*2300mm | ≈1200*650*2400mm |
20 | 测控柜尺寸（长*宽*高） | 700x600x750mm | |
21 | 机器重量 | ≈1200kg | ≈1300kg |
22 | 控制柜重量 | ≈30kg | |
