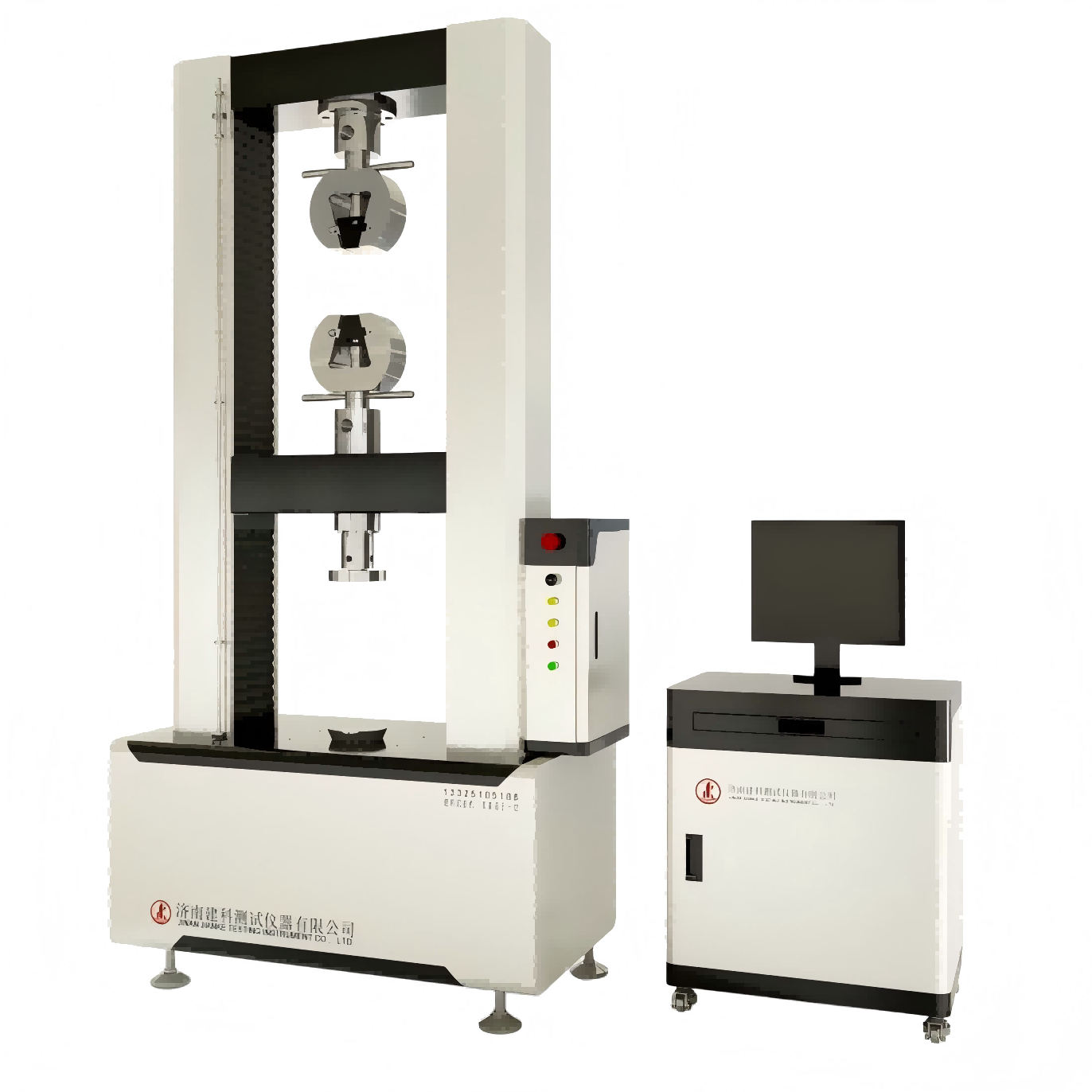

Product name：Microcomputer-Controlled Electronic Universal Testing Machine
Product model： WDW-100/WDW-200/WDW-300
PRODUCT FUNCTIONS:It is used for mechanical tests such as tension, compression, bending, shear, peeling, and tearing with a maximum force below 100KN/200KN/300kN. By selecting different test fixtures, it can complete the mechanical property testing of metal materials and non-metallic materials.
COMPLIANCE STANDARDS:
GB/T 16491 Electronic Universal Testing Machines
GB/T 2611 General Technical Requirements for Testing Machines
JJG 139 Tension, Compression and Universal Testing Machines
JJG 475 Electronic Universal Testing Machines
GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Ambient Temperature
GB/T 232 Metallic Materials - Bending Test Method
GB/T 7314 Metallic Materials - Compression Test Method at Ambient Temperature
GB/T 1040 Determination of Tensile Properties of Plastics
GB/T 1041 Determination of Compressive Properties of Plastics
GB/T 9341 Determination of Flexural Properties of Plastics
GB/T 529 Vulcanized Rubber or Thermoplastic Rubber - Determination of Tear Strength (Crescent, Right-Angle and裤形Test Pieces)
GB/T 528 Vulcanized Rubber or Thermoplastic Rubber - Determination of Tensile Stress-Strain Properties
Not listed in detail; additional standards can be added as needed.
PRODUCT FEATURES:
High-strength optical axis fixes the upper crossbeam and workbench to form a high-rigidity gantry-type main machine frame;
Transmission structure consisting of servo motor + reducer + timing belt + pulley + precision gapless ball screw to realize the up and down movement of the crossbeam, and the test process is implemented through measurement and control software;
High-precision spoke-type/S-type force sensor with a force measurement accuracy of Grade 0.5;
A variety of complete test fixtures, connected by bolts + simple nut locking, easy to operate;
Equipped with extensometer and displacement meter to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, with built-in various testing method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the main machine is designed with stainless steel adjustable leveling feet, which is convenient for equipment positioning and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light for operation status prompt, voice operation prompt, and emergency stop switch designed;

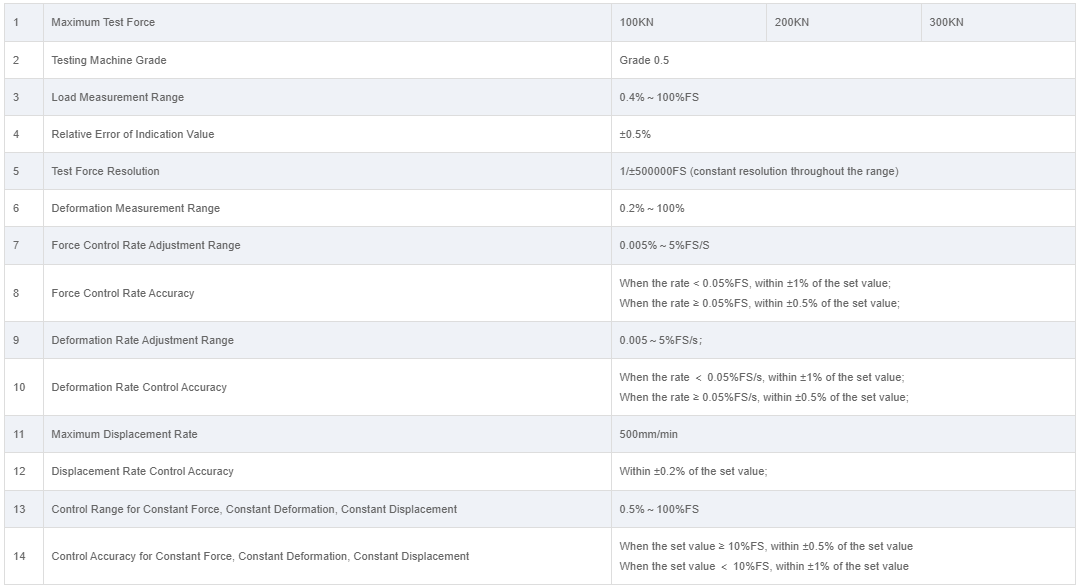

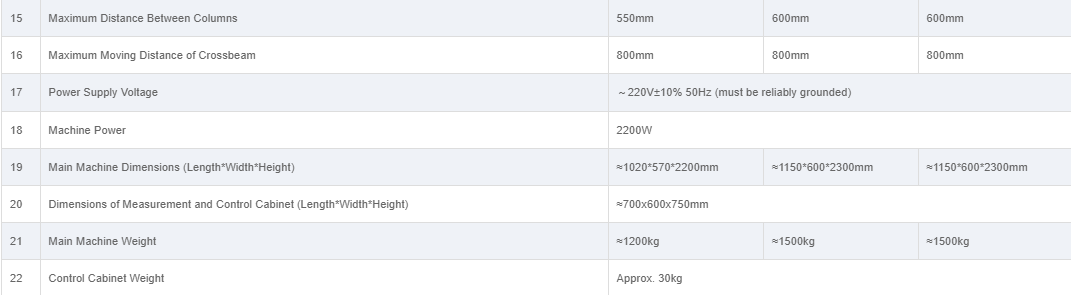

PRODUCT PARAMETERS:

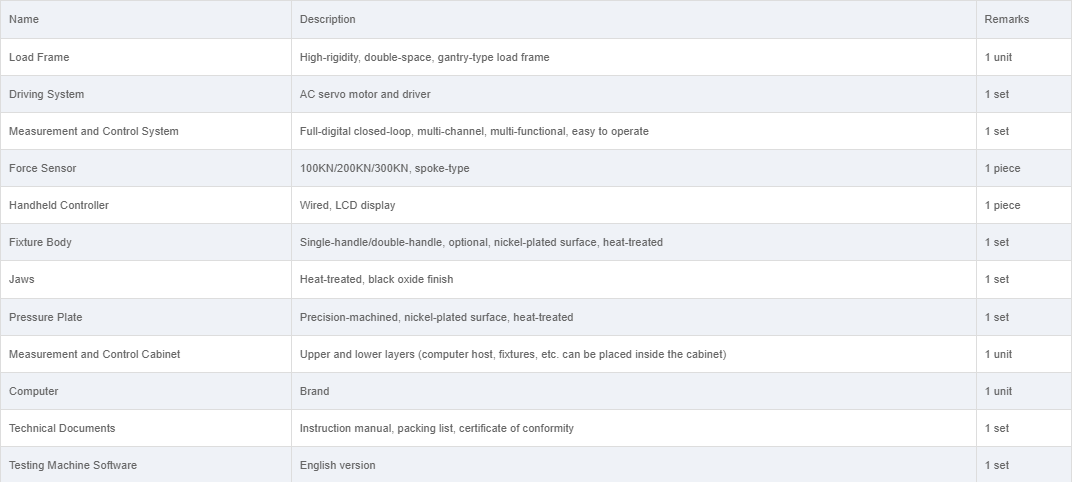

Product Configuration (subject to the final order):
