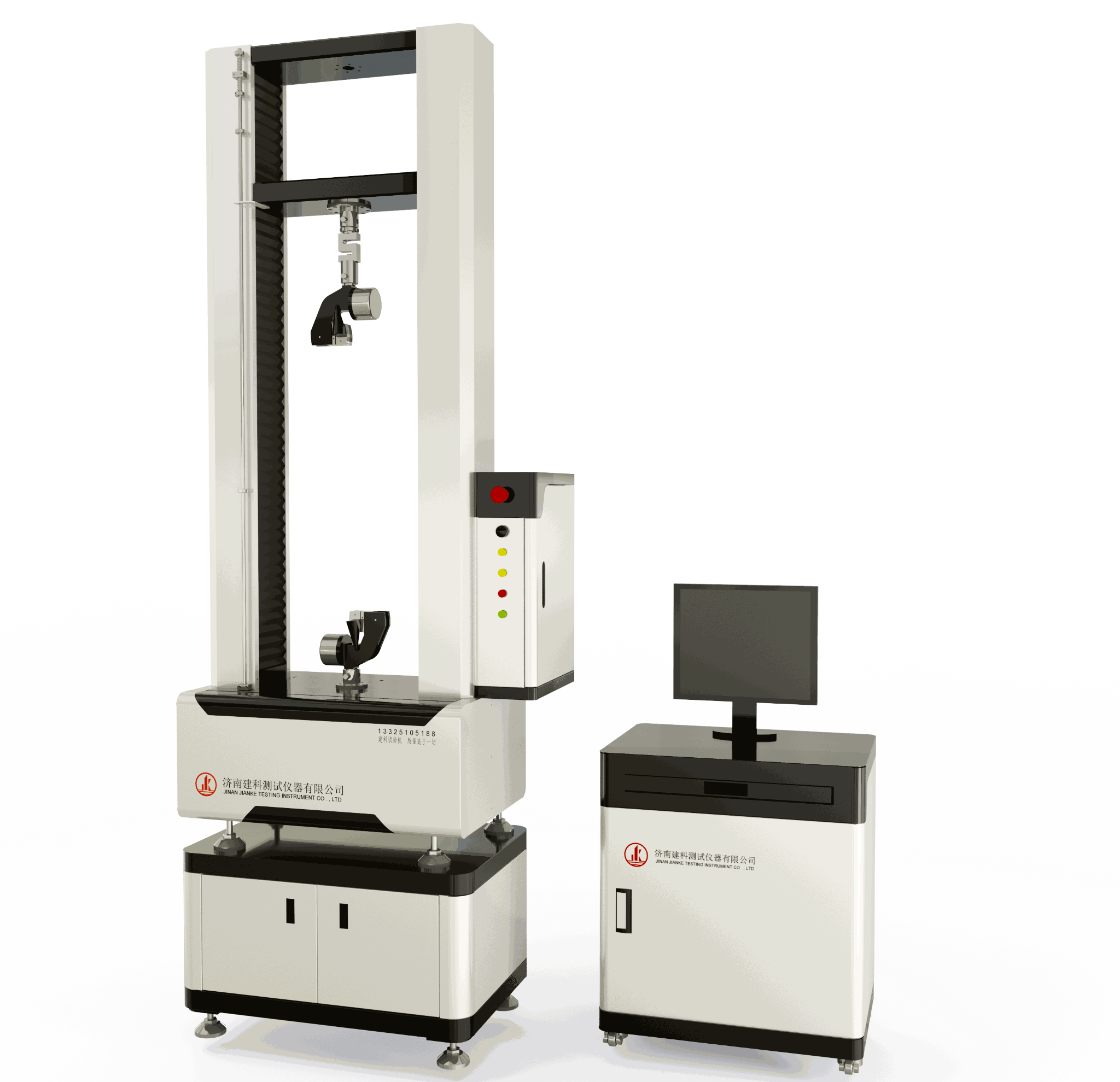

Product model: WDW-1
Product Function:
Designed for testing the tensile strength and elongation of materials such as fiber tows; also suitable for testing a wide range of other materials.
Applicable Standards:
ASTM A370, ASTM E4, ASTM E8, ASTM E9, ASTM D638, ASTM D882, ASTM D3039, ASTM D3479, ASTM E517, ASTM D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO 6892, ISO 527-1, ISO 527-3, ISO 527-4, ISO 7438, ISO 7500-1, EN 12311-1, EN 13707, UNE 104-242, ASTM D4434, ASTM D6878, ISO 37, ISO 34
(This list is not exhaustive; additional standards can be added as required.)
1. High-strength guide columns secure the upper crosshead and the worktable, forming a highly rigid gantry-style main frame.
2. The transmission system—comprising a servo motor, gearbox, synchronous belt, pulleys, and a precision zero-backlash ball screw—drives the vertical movement of the crosshead, with the testing process managed via dedicated measurement and control software.
3. Equipped with a high-precision spoke-type or S-type load cell, ensuring a force measurement accuracy of Class 0.5.
4. A wide range of comprehensive testing fixtures, utilizing pin connections and simple nut-locking mechanisms for ease of operation.
5. Supports the integration of extensometers, displacement sensors, and large-deformation measuring instruments for precise acquisition of material deformation data.
6. Features a powerful, fully digital, closed-loop, multi-channel measurement and control system. It includes built-in standards for various test methods, enables automated control of the testing process, supports data storage and export, and allows for network integration with external systems.
7. The base of the main frame is equipped with adjustable stainless-steel leveling feet, facilitating equipment positioning and subsequent fine-tuning.
8. A modular electrical control cabinet design simplifies troubleshooting.
9. Includes comprehensive safety features: overload protection for test forces, safety limit switches, and overcurrent/overvoltage protection. The system also provides operational status indicators (via indicator lights and voice prompts) and an emergency stop switch.
| No. | Specification | Value |
|---|---|---|
| 1 | Load Cell Capacity | Standard: 1,000 N; maximum: 10 kN |
| 2 | Accuracy Class | Class 0.5 |
| 3 | Force Measurement Range | 0.4%–100% FS (Class 0.5) |
| 4 | Relative Error of Force Indication | ±0.5% (Class 0.5) |
| 5 | Force Resolution | 1/500,000 FS (constant across the full range) |
| 6 | Deformation Measurement Range | 0.2%–100% |
| 7 | Maximum Crosshead Speed | 1,000 mm/min |
| 8 | Maximum Column Spacing | 450 mm |
| 9 | Maximum Crosshead Travel | 1,200 mm (up to 1,270 mm with the compression platen removed) |
| 10 | Power Supply | 220 V AC ±10%, 50 Hz (reliable grounding required) |
| 11 | Motor Power | 750 W |
| 12 | Main Frame Dimensions (L × W × H) | Approx. 760 × 450 × 2,100 mm |
| 13 | Control Cabinet Dimensions (L × W × H) | Approx. 650 × 450 × 780 mm |
| 14 | Main Frame Weight | Approx. 350 kg |
| 15 | Machine Control Cabinet Weight | Approx. 30 kg |
| 16 | Computer Control Cabinet Weight | Approx. 30 kg |
