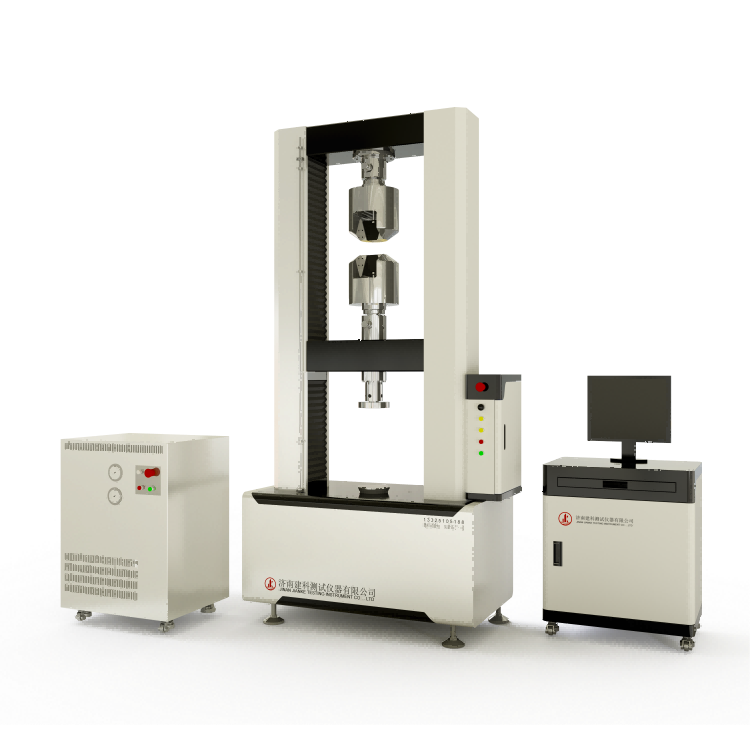

Product name: Microcomputer-controlled electronic universal testing machine
Product model: WDW-100/WDW-200/WDW-300
PRODUCT FUNCTIONS:It is used for mechanical tests such as tension, compression, bending, shear, peeling, and tearing with a maximum load of below 100KN/200KN/300kN. By selecting different test fixtures, it can complete the mechanical property testing of metal materials and non-metal materials.
APPLICABLE STANDARDS:
GB/T 16491 Electronic Universal Testing Machine
GB/T 2611 General Technical Requirements for Testing Machines
JJG 139 Tensile, Compression and Universal Testing Machines
JJG 475 Electronic Universal Testing Machines
GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature
GB/T 232 Metallic Materials - Bending Test Method
GB/T 7314 Metallic Materials - Compression Testing Method at Room Temperature
GB/T 1040 Determination of Tensile Properties of Plastics
GB/T 1041 Determination of Compressive Properties of Plastics
GB/T 9341 Determination of Flexural Properties of Plastics
GB/T 529 Determination of Tear Strength of Vulcanized or Thermoplastic Rubbers (Trouser, Angle and Crescent Test Pieces)
GB/T 528 Determination of Tensile Stress-Strain Properties of Vulcanized or Thermoplastic Rubbers
High-strength optical axis fixed upper crossbeam and workbench form a high-rigidity gantry frame main machine:
The transmission structure of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the crossbeam, and the test process is realized through measurement and control software:
High-precision spoke-type/S-type load cell with a force measurement accuracy of grade 0.5;
A variety of complete test fixtures with pin connection and simple nut locking for easy operation;
Equipped with extensometer and displacement meter to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system with built-in various testing method standards, automatic control of the test process, data can be saved and exported, and can be networked with multiple networking companies;
Caster wheels/adjustable leveling feet are designed at the bottom of the main machine to facilitate equipment positioning and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light running status prompt, voice running prompt, and emergency stop switch designed;

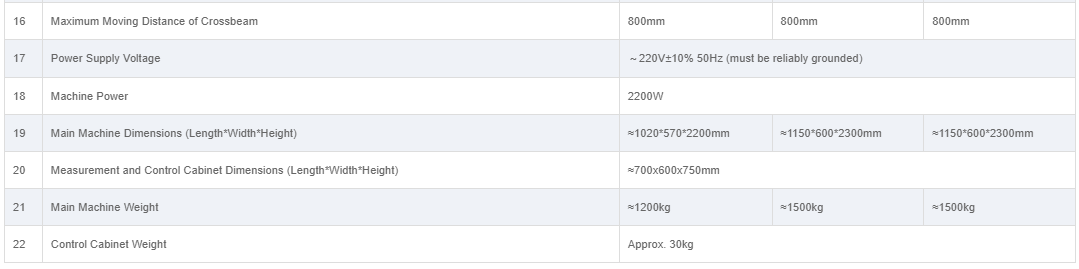

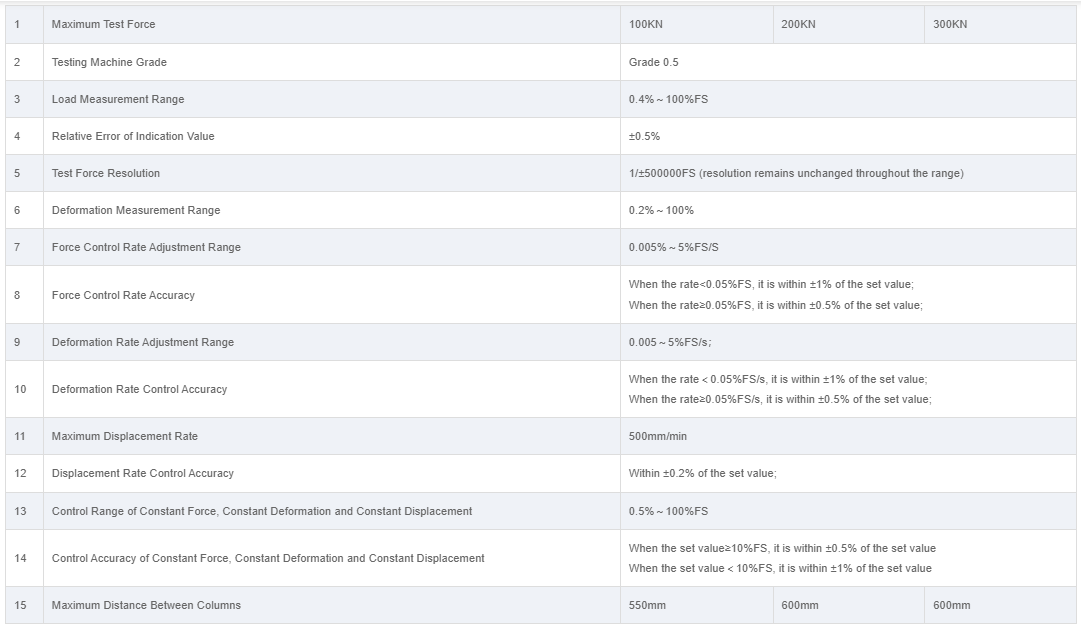

PRODUCT PARAMETERS:

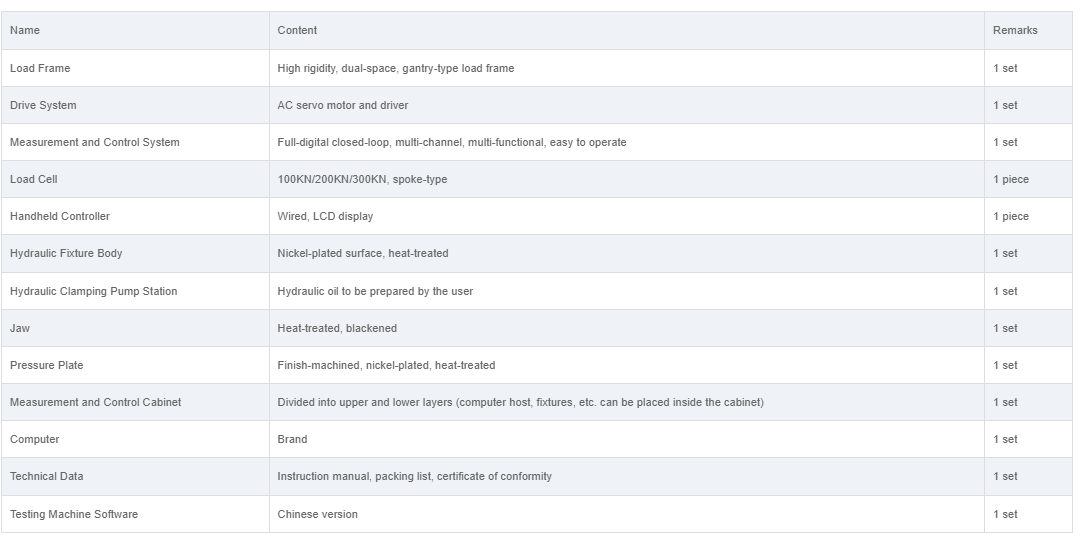

PRODUCT CONFIGURATION (SUBJECT TO THE ORDER FINALLY):
