Impact Specimen Notch Projector
XT-50

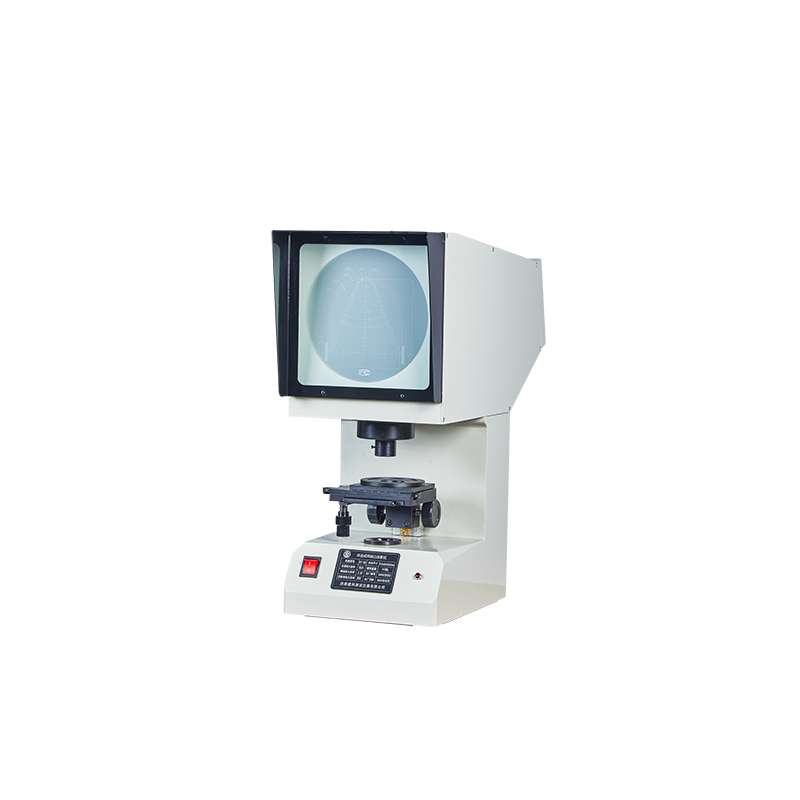

Impact Specimen Notch Projector
XT-50

A special optical instrument used to determine whether the V-notch and U-notch of metal impact specimens are qualified

Product name: Impact specimen notch projector

Product model: XT-50

Product function: A special optical instrument used to determine whether the V-notch and U-notch of metal impact specimens are qualified.

Based on standard: GB/T 229 Metal Charpy notch impact test method

序号

项目

技术指标

1

投影屏直径

180mm

2

方工作台尺寸

110×125mm

3

圆工作台直径

90mm

4

工作台玻璃直径

70mm

5

工作台纵向行程

±10mm

6

工作台横向行程

±10mm

7

工作台升降行程

±12mm（无刻度）

8

工作台转动范围

0~360°（无刻度）

9

仪器放大倍率

50X

10

物镜放大倍率

2.5X

11

投影物镜放大倍率

20X

12

光源（卤钨灯）

12V，100W

13

电源

220V，50Hz

14

外形尺寸

515×224×603mm

15

重量

≈18Kg
