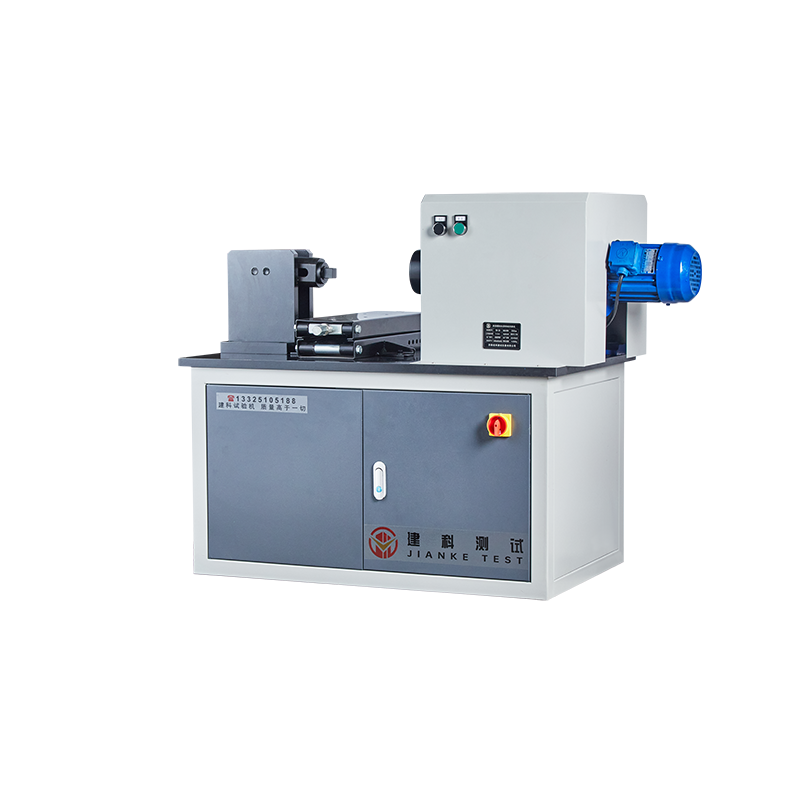

Product name: High-strength bolt anti-slip plate tightening machine
Product model: YH-24
Product function: It is a special equipment for tightening the slip plate during the bolt anti-slip test.
Based on standards:
GB/T 1231 High-strength large hexagonal head bolts, large hexagonal nuts, washers and technical conditions for steel structures
GB/T 3632 Torsion shear type high-strength bolt connection pair for steel structures
GB 50205 Steel structure construction quality acceptance standard
The motor drives the reducer to rotate to tighten and remove the bolts;
Compact structure, simple operation, time-saving and labor-saving, easy maintenance, stable and safe operation;
序号 | 项 目 | 技术指标 |
1 | 输出扭矩 | 2000nm |
2 | 工作盘转速 | 1r/min |
3 | 机器外形 | 1290*850*900mm |
4 | 机器重量 | 200Kg |
5 | 电源 | 380V |
6 | 功率 | 0.37kW |
