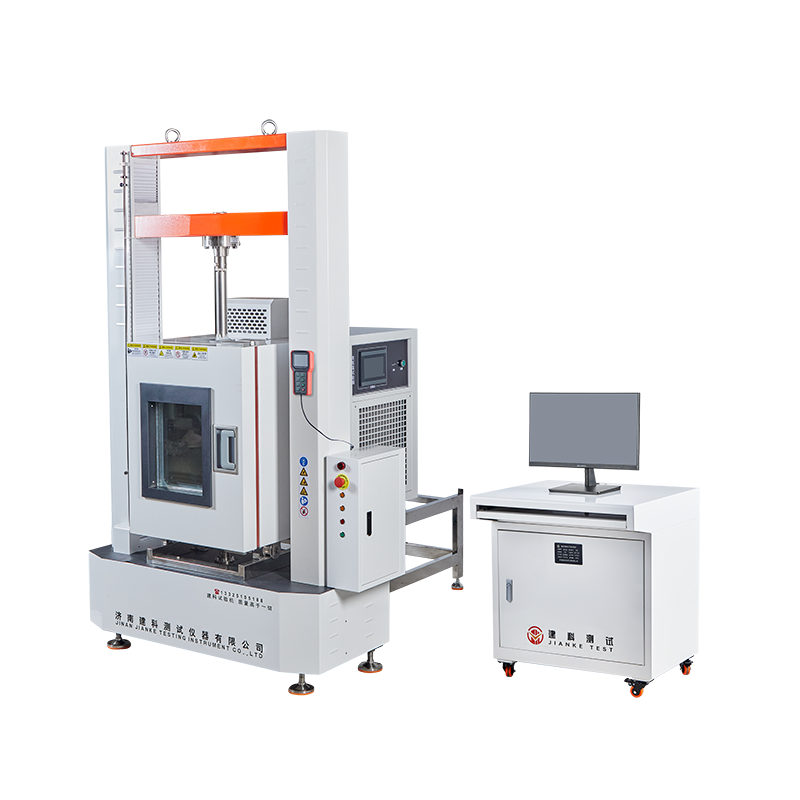

Product name: Microcomputer-controlled aluminum alloy insulation profile high and low temperature testing machine
Product model: WDW-50GDW
Product function: Suitable for tensile test, compression test, bending test of aluminum alloy and aluminum profile, transverse tensile test, longitudinal shear test and torsion test of aluminum alloy insulation profile, etc.
Based on the standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, compression and universal testing machines
JJG 475 Electronic universal testing machine
GB/T 28289 Composite performance test method for aluminum alloy insulation profiles
GB/T228.1 Tensile test of metal materials
GB/T7314 Compression test method for metal materials at room temperature
GB/T232 Bending test method for metal materials
GB 5237.1 Aluminum alloy building profiles Part 1 Base material
GB 5237.2 Anodized profiles Part 2
GB 5237.3 Electrophoretic paint profiles Part 3
GB 5237.4 Powder spray profiles Part 4
GB 5237.5 Fluorocarbon paint spray profiles Part 5
GB 5237.6 Aluminum alloy building profiles Part 6
GBT 3880.1～3 General industrial aluminum and aluminum alloy plates and strips
GBT 5237.1～6 Aluminum alloy building profiles
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | 传感器最大试验力 | 50KN |
2 | 试验机级别 | 0.5级 |
3 | 负荷测量范围 | 0.4%-100%FS |
4 | 示值相对误差 | ±0.5% |
5 | 试验力分辨力 | 1/±500000F.S（全程分辨力不变） |
6 | 变形测量范围 | 0.2%-100% |
7 | 力控速率调节范围 | 0.005%-5%FS/S |
8 | 力控速率控制精度 | 速率 <0.05%FS时，为±1%设定值以内； 速率 ≥0.05%FS时，为±0.5%设定值以内； |
9 | 变形速率调节范围 | 0.005～5%FS/s； |
10 | 变形速率控制精度 | 速率＜0.05%FS/s时，为设定值的±1%以内； 速率≥0.05%FS/s时，为设定值的±0.5%以内； |
11 | 最大位移速率 | 500mm/min； |
12 | 位移速率控制精度 | 为设定值的±0.2%以内； |
13 | 恒力、恒变形、恒位移控制范围 | 0.5%-----100%FS |
14 | 恒力、恒变形、恒位移控制精度 | 设定值≥10%FS时，为设定值的±0.5%以内 设定值＜10%FS时，为设定值的±1%以内 |
15 | 有效试验跨度 | 800mm |
16 | 横梁最大移动距离 | 1200mm |
17 | 电源 | ～220V±10% 50Hz（须可靠接地） |
18 | 电机功率 | 750W |
19 | 主机尺寸（长*宽*高） | ≈1100x600x2200mm |
20 | 控制柜尺寸（长*宽*高） | ≈700*600*750mm |
21 | 高低温试验箱温控范围 | -40℃～150℃ |
22 | 高低温试验箱温控精度 | ±0.1℃ |
23 | 高低温试验箱内胆尺寸 | ≈390*300*580mm |
24 | 主机重量 | ≈800kg |
25 | 控制柜重量 | ≈30kg |
26 | 高低温试验箱重量 | 约200kg |
