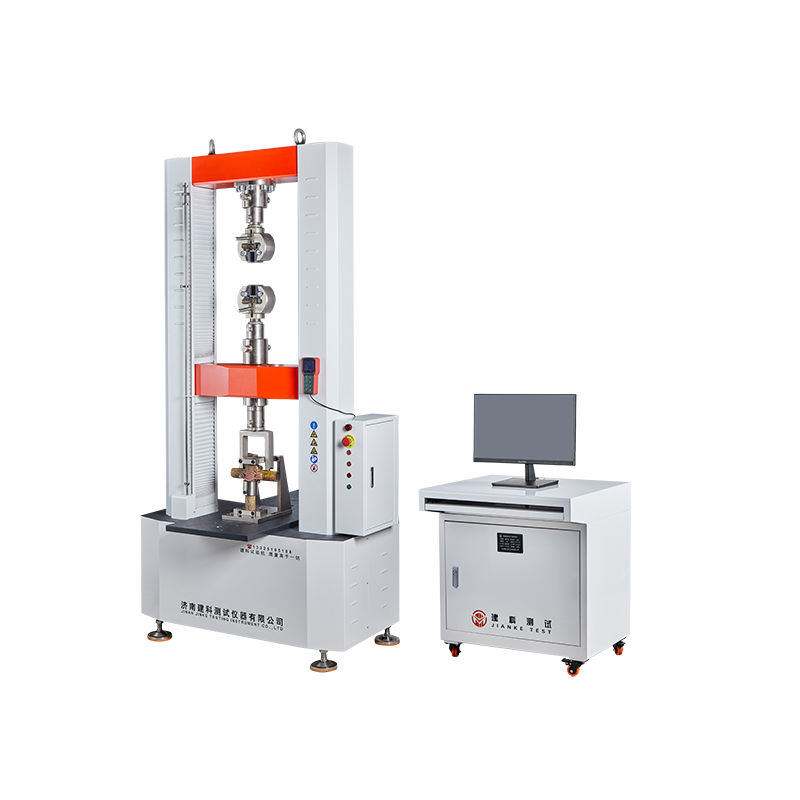

Product name: Microcomputer controlled steel pipe scaffolding fastener testing machine
Product model: WDW-200K
Product function: bowl buckle steel pipe scaffolding, wheel buckle, disc type, card type scaffolding, right angle fasteners, rotating fasteners, butt fasteners, bases, etc. for anti-slip, anti-destruction, torsional stiffness, tensile, compression and other mechanical properties testing; upper bowl buckle strength, lower bowl buckle welding strength, cross bar joint strength, cross bar joint welding strength, adjustable support compressive strength and other mechanical properties testing; socket type disc buckle pin pull-out force test; fastener components (vertical pole, top pole, diagonal pole, support, adjustable base, adjustable support, bowl buckle node) mechanical properties test
Based on the standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, pressure and universal testing machines
JJG 475 Electronic universal testing machine
GB 15831 Steel pipe scaffolding fasteners
GB 24911 Cup-type steel pipe scaffolding components
GB/T 16491 Electronic universal material testing machine
JG/T 503 Socket-type disc-type steel pipe support components
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | Maximum test force | 200kN |
2 | Testing machine accuracy class | Class 0.5 |
3 | Load measuring range | 0.4%～100%FS |
4 | Relative indication error | ±0.5% |
5 | Test force resolution | 1/±500000FS (the resolution remains unchanged throughout the process) |
6 | Deformation measurement range | 0.2%～100% FS |
7 | Force control rate adjustment range | 0.005%～5%FS/S |
8 | Force control rate accuracy | When the rate is <0.05%FS, it is within ±1% of the set value; When the rate is ≥0.05%FS, it is within ±0.5% of the set value; |
9 | Deformation rate adjustment range | 0.005～5%FS/s； |
10 | Deformation rate control accuracy | When the rate is <0.05%FS/s, it is within ±1% of the set value; When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value; |
11 | Maximum displacement rate | 500mm/min； |
12 | Displacement rate control accuracy | Within ±0.2% of the set value; |
13 | Constant force, deformation and displacement control range | 0.5%～100%FS |
14 | Constant force, deformation and displacement control accuracy | When the set value is ≥10%FS, it should be within ±0.5% of the set value. When the set value is <10%FS, it is within ±1% of the set value. |
15 | Effective test span | 600mm |
16 | Test space | 800mm |
17 | Supply voltage | 220V±10% 50Hz (must be reliably grounded) |
18 | Machine power | 2200W |
19 | Load frame size (length*width*height) | 1150*600*2300mm |
20 | Measurement and control cabinet size (length*width*height) | 700x600x750mm |
21 | Load frame weight | About 1500kg |
22 | Control cabinet weight | About 30kg |
