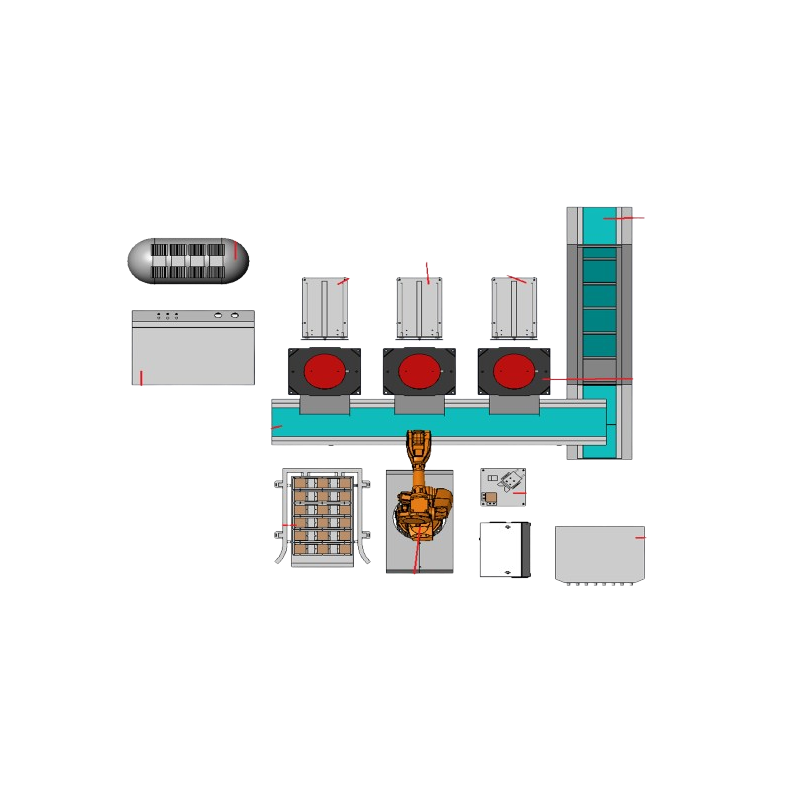

Product name: Automatic concrete detection system
Product model: JK-ROBOT6-3
Product function: Automatic identification of concrete test block number, automatic measurement of size and angle, automatic compression test, automatic data upload to the network platform, distinction between qualified and unqualified samples, recovery of samples after the test, abnormal operation alarm of the whole system, etc.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tension, pressure and universal testing machines
JJG 475 Electronic universal testing machine
GB/T 50081 Test method for mechanical properties of ordinary concrete
Product features:
Each test piece can be scanned and identified, and errors can be corrected automatically. If each group of test pieces is not placed in order, it will automatically identify and prompt the operator to eliminate the error and continue the test.
It can control the feeding system and the discharging system.
Under special circumstances, any action element can be operated in manual mode.
It has a fault alarm function, dynamically displays fault information, and assists maintenance personnel in maintenance.
Supports automatic adjustment of the concrete test block loading rate of the pressure testing machine based on the sample information obtained by scanning the code.
The software can be automatically upgraded and automatically updated to the latest version when connected to the network.
Equipped with an automatic opening and closing protective cover, it works in coordination with the feeding system.
The press has the characteristics of energy saving, quietness, fast movement, and precise control.
The sound of the press is no higher than 40dB (A) when working, and the cylinder movement speed can reach 300mm/min.
The digital twin technology is used to realize the binding of software animation and real-time robot action, which is convenient for observation and judgment.
The pressure testing machines work independently without affecting each other. If one press fails, the other two presses can be tested normally.
Serial number | Parameter | Parameter |
1 | Robotic arm payload | 20kg, imported brand |
2 | Robot arm axes | Six axis |
3 | Compression testing machine range | 2000KN |
4 | Compression testing machine accuracy | Class 0.5 |
5 | Compression testing machine load frame structure | One-piece cast load frame |
6 | Compression testing machine cylinder moving speed | 300mm/min |
7 | Number of compression testing machines supported | 3 units |
8 | Working efficiency of a single compression testing machine | 12 groups/station/hour Take 1503mm specimen, C30 strength |
9 | System efficiency | 288 groups/8 hours Take 1503mm specimen, C30 strength |
10 | System applicable test piece size | 1003mm, 1503mm, both applicable |
