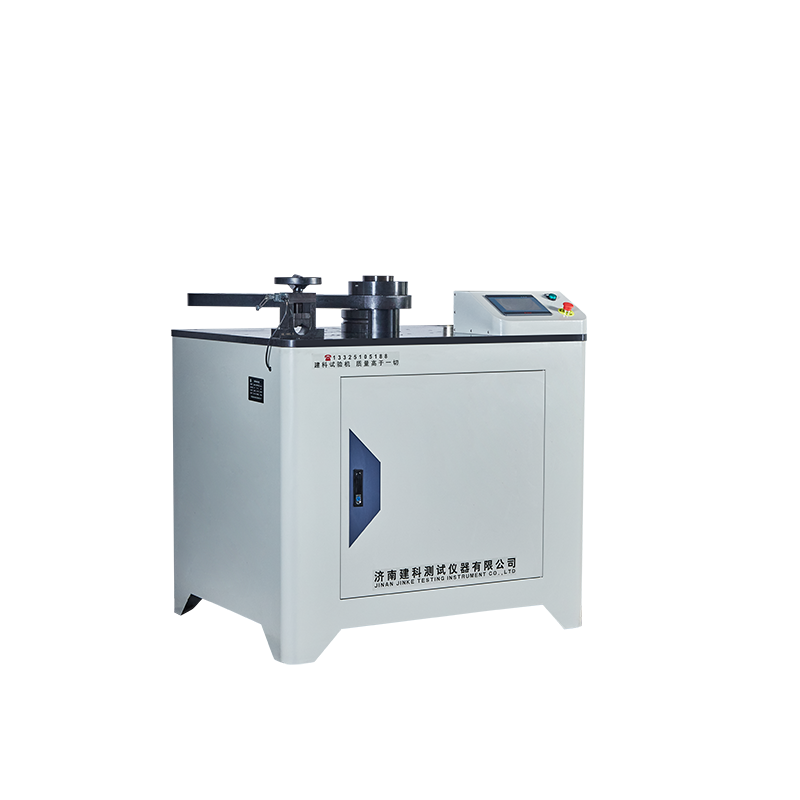

Product name: Steel pipe bending tester
Product model: GGW-60A
Product function: Forward and plane reverse bending tests on various steel bars, and can also be used for bending tests on metal plates.
Based on standards:
GB/T 244 Metal material pipe bending test method
GB/T 3091 Welded steel pipe for low-pressure fluid transportation
GB/T 32976 Transverse bending test of metal material pipes
GB/T 28897 Steel-plastic composite pipe
GB/T 32958 Stainless steel composite steel pipe for fluid transportation
GB/T 32970 Straight seam submerged arc welded steel pipe for high temperature and high pressure pipelines
GB/T 8163 Seamless steel pipe for fluid transportation
GB/T 13793 Straight seam electric welded steel pipe
CJ/T 120 Plastic-coated composite steel pipe for water supply
GB/T 8162 Seamless steel pipe for structure
Equipment structure: All-in-one machine, compact structure, small footprint;
Control mode: Fully automatic, Chinese touch screen, simple operation;
Bending form: The bending test is achieved by forward and reverse rotation of the motor;
Bending angle: Forward and reverse bending angles can be set arbitrarily within 90º;
Safety protection: Safety protection cover is standard when leaving the factory;
序号 | 项目 | 参数 |
1 | 弯曲钢管最大直径 | Φ60.3mm |
2 | 正向弯曲角度 | 0～90°内任意设定 |
3 | 反向弯曲角度 | 0～90°内任意设定 |
4 | 工作盘转速 | ≤0.4rad/s |
5 | 机器外形 | 1200×1500×1400mm |
6 | 机器重量 | ≈1800Kg |
7 | 电动机功率 | 1.5kW |
8 | 电源 | 380V |
