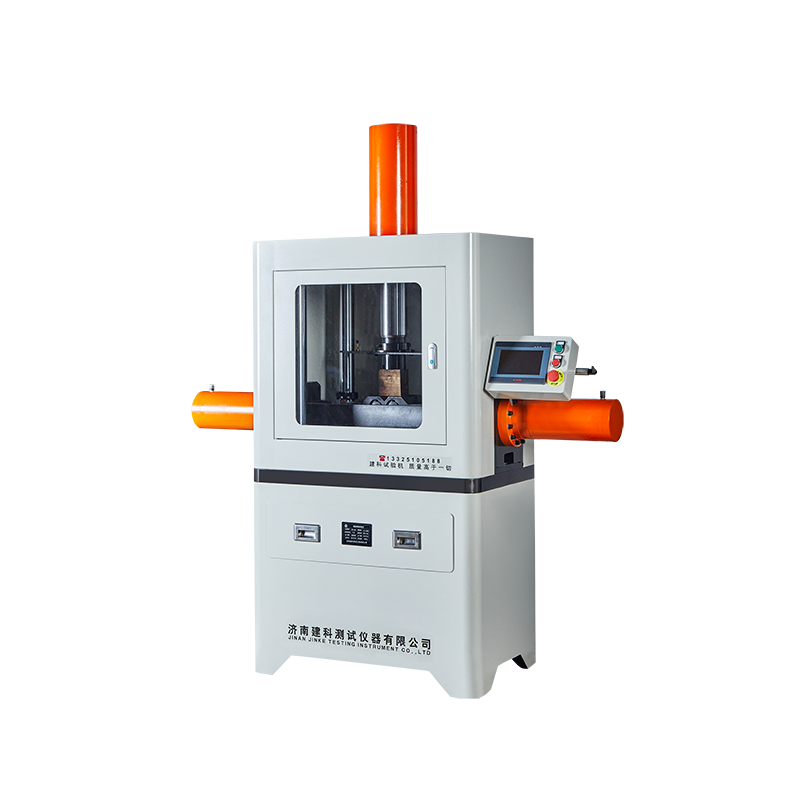

Product name: Steel bar bending tester
Product model: GW-160A
Product function: Forward and plane reverse bending tests on various steel bars, and can also be used for bending tests on metal plates.
Based on standards:
GB/T 1499.1 Steel for reinforced concrete Part 1 Hot-rolled round steel bars
GB/T 1499.2 Steel for reinforced concrete Part 2 Hot-rolled ribbed steel bars
GB/T 28900 Test methods for steel for reinforced concrete
YB/T 5126 Test methods for bending and reverse bending of steel bars for reinforced concrete
GB/T 21839 Test methods for steel for prestressed concrete
GB/T 33365 Test methods for welded steel mesh
GB/T 232 Test methods for bending of metal materials
Main machine structure: four column structure, vertical loading of the main oil cylinder up and down, horizontal loading of the left and right auxiliary oil cylinders;
Loading method: hydraulic loading, equipped with hydraulic pump station;
Control method: automatic control, manual control, optional;
"AutomaticControl": "touchScreenOperation", "selectTestProgram", "setSteelBarDiameter", "automaticallyAdjustBendingSpan", "automaticallyCompleteBendingTest", cylinder automatically returns to position after bending is completed;
Manual control: bending loading speed is adjustable, inching, linkage, program control, realtime display of bending angle;
Bending angle: positive bending, reverse bending angle, arbitrarily set;
Work efficiency: some samples can complete 3 at a time, high work efficiency;
Safety protection: factory standard safety cover;
| 序号 | 项目 | 参数 |
| 1 | 弯曲钢筋直径范围 | φ6-φ40mm |
| 2 | 正向弯曲角度 | 0～180°内任意设定 |
| 3 | 反向弯曲角度 | 0～180°内任意设定 |
| 4 | 弯曲跨距 | 365mm |
| 5 | 油缸额定压力 | 300KN |
| 6 | 活塞行程 | 300mm |
| 7 | 液压站工作压力 | 0-25MPa |
| 8 | 机器外形（mm） | 1200*730*2100mm |
| 9 | 机器重量 | ≈900Kg |
| 10 | 电动机功率 | 2.2kW |
| 11 | 电源 | 380V |
