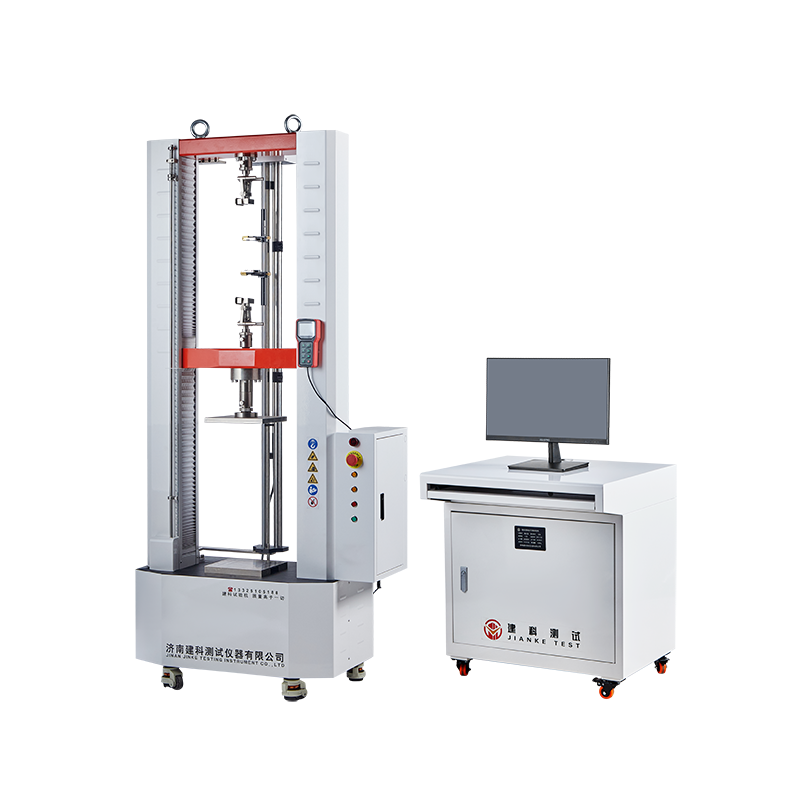

Product name: Microcomputer controlled waterproof coating tensile tester
Product model: WDW-02
Product function: used for testing parameters such as tensile properties, maximum peak tensile force, maximum peak elongation tensile strength, and elongation at break of waterproof coatings.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, pressure and universal testing machines
JJG 475 Electronic universal testing machine
GB/T 16777 Test methods for building waterproof coatings;
GB/T 23445 Polymer cement waterproof coatings;
JC/T 975 Waterproof coatings for roads and bridges;
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and emergency stop switch;
Adopt pneumatic clamping, adjustable output pressure, easy to operate;
| 1 | 传感器最大试验力 | 标配200N（50KN以下任选一） |
| 2 | 试验机级别 | 0.5级 |
| 3 | 负荷测量范围 | 0.4%-100%FS（0.5级） |
| 4 | 示值相对误差 | ±0.5%（0.5级） |
| 5 | 试验力分辨力 | 1/±500000F.S（全程分辨力不变） |
| 6 | 变形测量范围 | 0.2%-100% |
| 7 | 力控速率调节范围 | 0.005%-5%FS/S |
| 8 | 力控速率控制精度 | 速率 <0.05%FS时，为±1%设定值以内；
速率 ≥0.05%FS时，为±0.5%设定值以内； |
| 9 | 变形速率调节范围 | 0.005～5%FS/s； |
| 10 | 变形速率控制精度 | 速率＜0.05%FS/s时，为设定值的±1%以内；
速率≥0.05%FS/s时，为设定值的±0.5%以内； |
| 11 | 最大位移速率 | 600mm/min； |
| 12 | 位移速率控制精度 | 为设定值的±0.2%以内； |
| 13 | 恒力、恒变形、恒位移控制范围 | 0.5%-----100%FS |
| 14 | 恒力、恒变形、恒位移控制精度 | 设定值≥10%FS时，为设定值的±0.5%以内
设定值＜10%FS时，为设定值的±1%以内 |
| 15 | 立柱最大间距 | 450mm |
| 16 | 横梁最大移动距离 | 800mm |
| 17 | 大变形测量范围 | 10-800mm |
| 18 | 电源 | ～220V±10% 50Hz（须可靠接地） |
| 19 | 电机功率 | 750W |
| 20 | 主机尺寸（长*宽*高） | ≈760x450x2100mm |
| 21 | 控制柜尺寸（长*宽*高） | ≈700*600*750mm |
| 22 | 主机重量 | ≈350kg |
| 23 | 控制柜重量 | ≈30kg |
