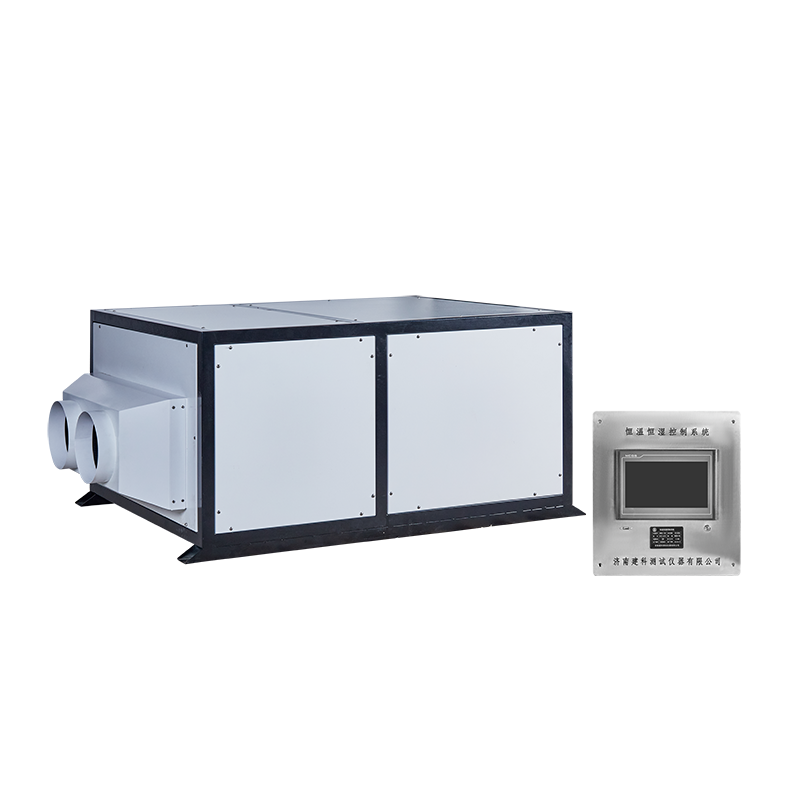

Constant temperature and humidity control system Ceiling type
HWHS-50

Constant temperature and humidity control system Ceiling type

HWHS-50

Constant temperature and humidity control system, used for humidity control in concrete test rooms, concrete mechanics rooms, cement test rooms, waterproofing membrane test rooms, coating test rooms, insulation material rooms, etc It is also suitable for temperature and humidity control in industrial and mining enterprises, hospitals, archives, etc

Product name: Constant temperature and humidity control system

Product model: HWHS-50/ HWHS-100

Product function: Constant temperature and humidity control system, used for humidity control in concrete test rooms, concrete mechanics rooms, cement test rooms, waterproofing membrane test rooms, coating test rooms, insulation material rooms, etc. It is also suitable for temperature and humidity control in industrial and mining enterprises, hospitals, archives, etc.

Display control mode: 10-inch true color touch screen, automatic instrument control.
Defrosting function: automatic defrosting function.
Compressor: international brand rotary compressor, low noise, reliable operation, high energy efficiency ratio.
Safety protection: with three-minute delay protection for compressor, sensor fault indication error code and other devices.
Humidification method: high-efficiency wet curtain, better humidification effect.
Humidification water tank: made of stainless steel.
Temperature control: wireless connection to the existing air conditioner in the test room, automatic control, more stable operation.
Fan design: using air conditioning dedicated centrifugal fan system, characterized by large air volume, low friction, low noise, long service life.
Drainage method: continuous drainage.
Water inlet method: automatic water inlet.
Installation method: wall embedded installation/wall-mounted installation, two options (user optional).

Serial number

Parameter

HWHS-50

HWHS-100

1

Maximum dehumidification capacity

65 liters/day

138 liters/day

2

Maximum humidification amount

3kg/hour

6kg/hour

3

Humidification method

Wet film humidification

4

Humidification water tank capacity

29L (total capacity), 22L (effective capacity)

57L (total capacity), 44L (effective capacity)

5

Maximum control area

≤50m2 (slightly fluctuating according to on-site working conditions

≤100m2 (slightly fluctuating according to on-site working conditions)

6

Water inlet method

Automatic water supply, 1/2-inch male thread

7

Drain outlet

1/2-inch male thread

8

Air inlet and outlet methods

Single air inlet, single air outlet

Double air inlet, double air outlet

9

Air inlet size

ф195mm

10

Air outlet size

ф195mm

11

Circulating air volume

500 m³/h

1000 m³/h

12

Maximum power

850W

2100W

13

Static pressure

150 Pa

14

Refrigerant model

R22

15

Overall dimensions

1055*580*585mm

1500*800*600mm

16

Operating ambient temperature

5~38℃

17

Power supply

AC220V/50Hz

18

Net weight

≈70KG

≈100KG
