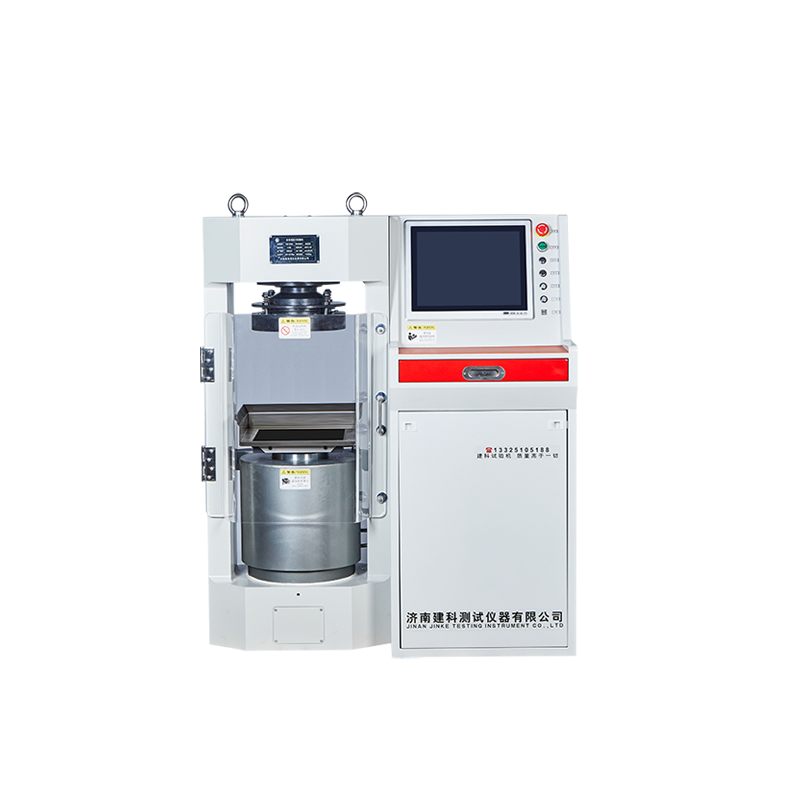

Mainframe structure: frame gantry structure, integral casting, mainframe rigidity reaches 1.5 times of effective range;
Measurement and control system: oil tank, servo oil pump, control valve group, sensor, servo controller and control software, computer and other components, high control accuracy and good reliability;
Servo oil pump: servo motor and high-pressure oil pump, with fast response speed and wide speed adjustment range;
Test accuracy: mainframe parts are processed by precision machining center, servo hydraulic control system distributes flow, high-precision spoke sensor measures force, ensuring 0.5 level test accuracy of the whole machine, better than national standards;
Noise: brand ultra-quiet oil pump, servo motor control, almost no noise when working, improve user experience;
Safety protection: equipped with high-toughness protection net, safe and beautiful;
Using industrial-grade touch screen computer, simple and convenient operation and strong ability to adapt to harsh environment, small space occupation and beautiful and durable.
Space adjustment method: equipped with large-stroke bidirectional oil cylinder, dual oil pump output, large flow oil pump quickly adjusts the test space, small flow oil pump accurately controls the loading speed.
Sensor type: high-precision spoke-type sensor, adjustment ball head, high precision of the whole machine;
Cylinder position memory function: after the test block is broken, the cylinder return time can be programmed and has a memory function;
Work efficiency: 150 standard test blocks, C30 number, no less than 100 groups/8 hours;
