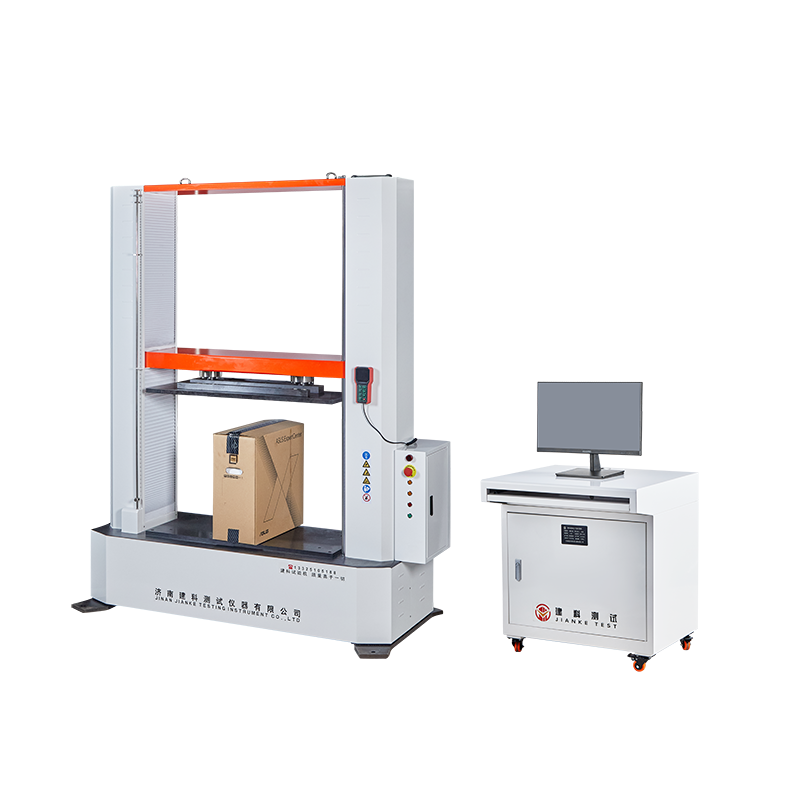

Product name: Microcomputer controlled packaging box pressure testing machine
Product model: WDW-50BZX
Product function:
For transport packaging, use the pressure testing machine to conduct compression test and static load stacking test (free loading plate/free load) to evaluate the compressive strength of the transport packaging when under pressure and the protection ability of the packaging to the contents.
The computer software measurement and control system displays the test force, packaging box deformation, fixed pressure deformation, fixed deformation pressure, maximum crushing force, maximum test force, and test curve in real time.
Adding accessories can complete the material tensile test of the transport packaging.
Based on standards:
GB/T 16491 Electronic universal testing machine
GB/T 2611 General technical requirements for testing machines
JJG 139 Tensile, compression and universal testing machines
JJG 475 Electronic universal testing machine
GB/T4857.3 Basic tests for packaging and transport packages Part 3
GB/T4857.4 Basic tests for packaging and transport packages Part 4
Not listed in detail, can be added at will
The high-strength optical axis fixes the upper beam and the work surface to form a high-rigidity portal frame host:
The transmission structure of the servo motor + reducer + synchronous belt + pulley + precision gapless ball screw realizes the up and down movement of the beam, and the test process is realized through the measurement and control software:
High-precision spoke/S-type force sensor, force measurement accuracy 0.5 level;
A variety of perfect test fixtures, pin connection + simple nut locking, easy to operate;
Add extensometer, displacement meter, large deformation measuring instrument to accurately measure material deformation data;
Powerful full-digital closed-loop, multi-channel measurement and control system, built-in various detection method standards, automatic control of the test process, data can be saved and exported, and can be connected to multiple networked companies;
The bottom of the host is designed with a wheel/adjustable leveling foot to facilitate the equipment placement and later adjustment;
Modular electrical control box for easy troubleshooting;
Test force overload protection, safety limit protection, overcurrent and overvoltage protection, indicator light operation status prompt, voice operation prompt, and design emergency stop switch;
1 | 最大试验力 | 50kN（50KN以下任选传感器） |
2 | 试验机级别 | 0.5级 |
3 | 负荷测量范围 | 0.5%～100%FS（0.5级） |
4 | 示值相对误差 | ±0.5% |
5 | 试验力分辨力 | 1/±500000FS（全程分辨力不变） |
6 | 变形测量范围 | 0.2%～100% FS |
7 | 力控速率调节范围 | 0.005%～5%FS/S |
8 | 力控速率控制精度 | 速率＜0.05%FS时，为±1%设定值以内； 速率≥0.05%FS时，为±0.5%设定值以内； |
9 | 变形速率调节范围 | 0.005～5%FS/s； |
10 | 变形速率控制精度 | 速率＜0.05%FS/s时，为设定值的±1%以内； 速率≥0.05%FS/s时，为设定值的±0.5%以内； |
11 | 位移速率调节范围 | 0.01～500mm/min； |
12 | 位移速率控制精度 | 为设定值的±0.2%以内； |
13 | 恒力、恒变形、恒位移控制范围 | 0.5%～100%FS |
14 | 恒力、恒变形、恒位移控制精度 | 设定值≥10%FS时，为设定值的±0.5%以内 设定值＜10%FS时，为设定值的±1%以内 |
15 | 有效试验跨度 | 1100mm（可定制） |
16 | 上、下压盘最大间距 | 1000mm（可定制加高） |
17 | 上、下压盘尺寸 | 1000*1000mm（可定制） |
18 | 电源电压 | ～220V±10% 50Hz（须可靠接地） |
19 | 机器功率 | 750W |
20 | 试验机主机尺寸 | ≈1650x900x2000mm |
21 | 电脑测控柜尺寸 | ≈700*600*750mm |
22 | 机器重量 | ≈1200kg |
23 | 控制柜重量 | ≈30kg |
